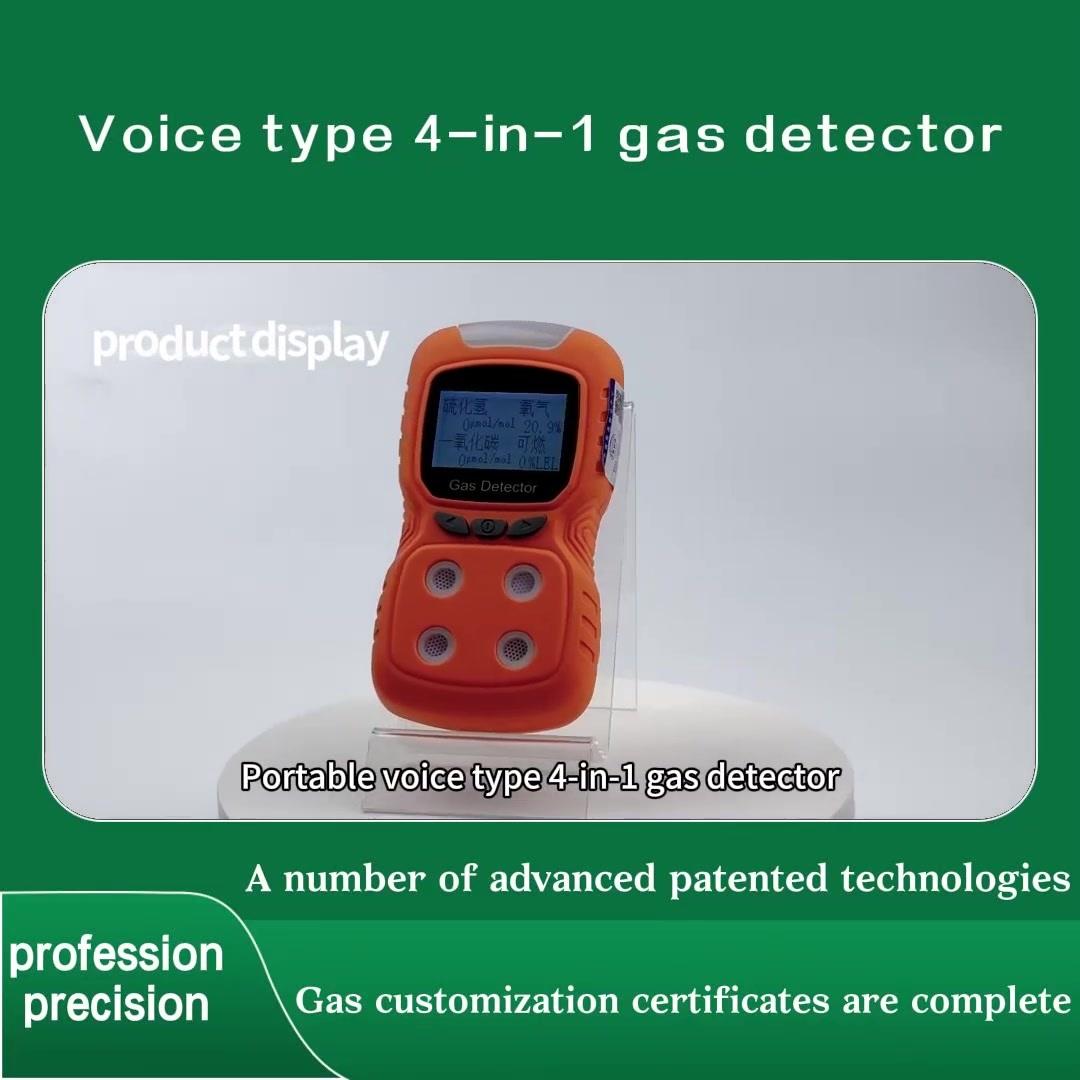

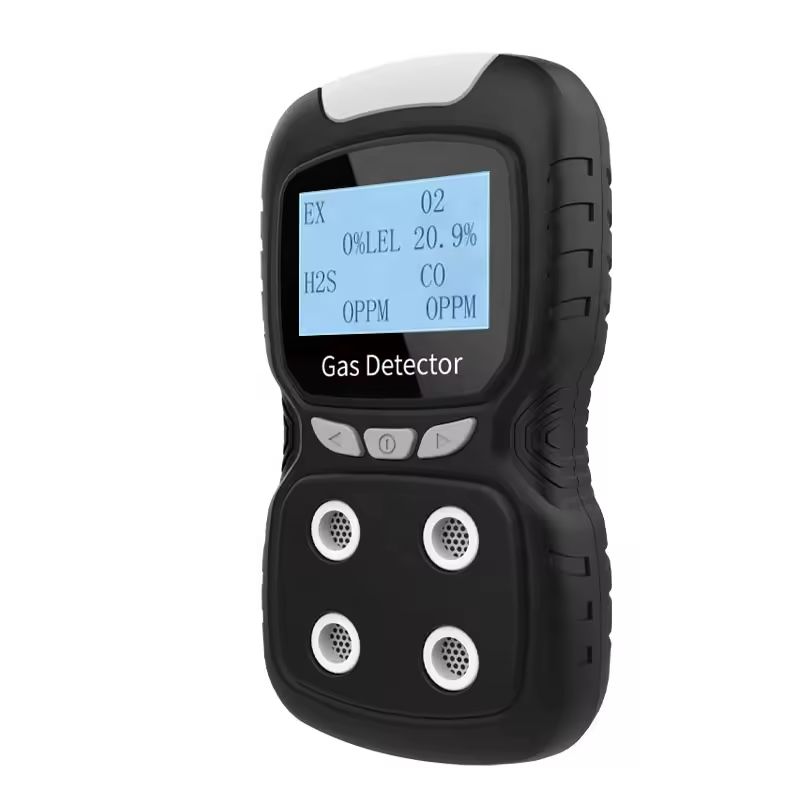

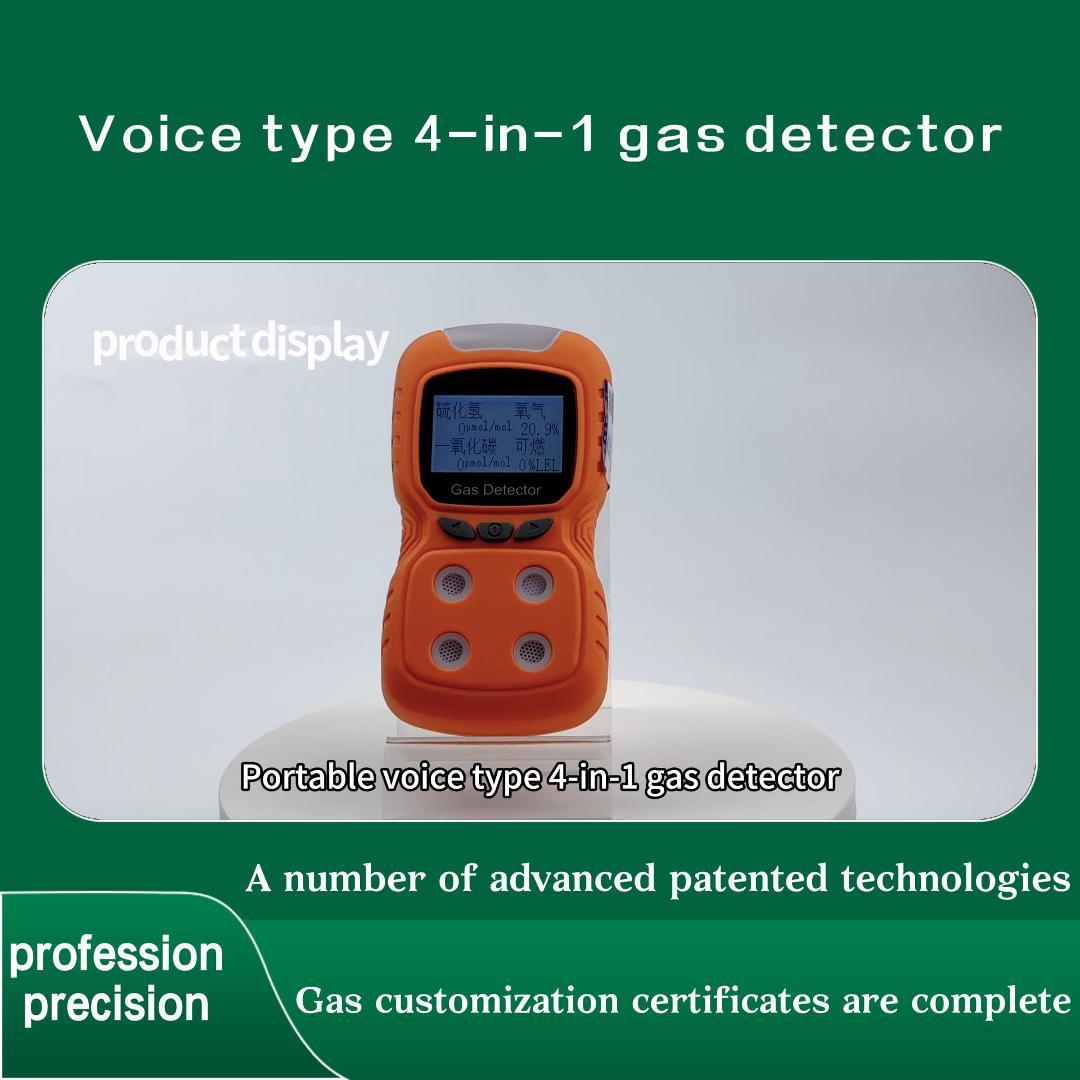

PLT840 Portable voice type Four-in-one gas detector
Category ：
Key Word ：
Portable voice type Four-in-one gas detector
Product Feature
|
Four in one Any four detection gases can be customized |
Triple alarm Sound and light shock alarm components |
Imported components Original, imported sensor |
Mortal voice Live voice voice |
Three prevention design Explosion-proof dust proof waterproof splash |
Chinese and English bilingual Both Chinese and English bilingual can switch |
Product Description

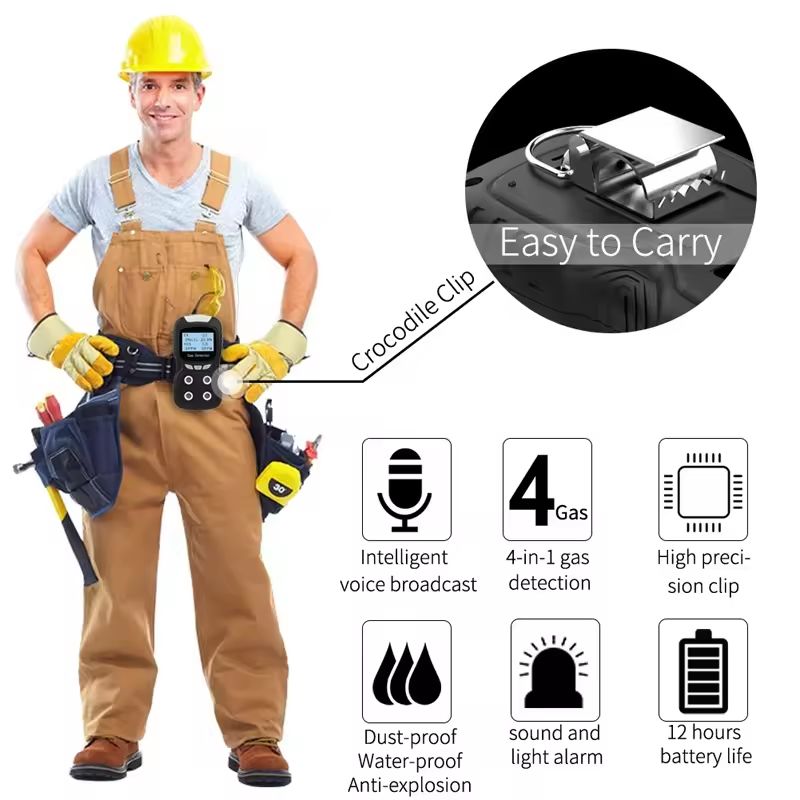

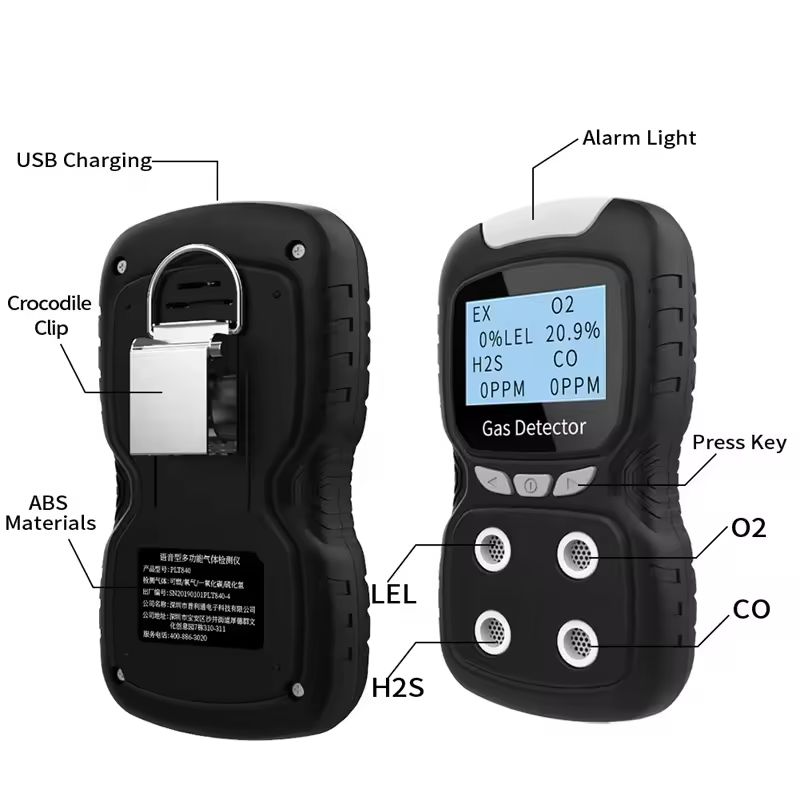

The portable four-in-one gas detector is a safe device that can continuously detect the concentration of leaked gas. Adopt advanced integrated circuit technology, embedded microcomputer control, high quality imported gas sensor, with excellent sensitivity and excellent repeatability; use dot matrix LCD display, support Chinese and English interface and Chinese and English voice prompt, users can quickly understand the product, simple use and maintenance; the shell of high strength engineering plastic, good earthquake, high strength, high-grade atmosphere and dust-proof function. Built-in 1800 mAh lithium-ion battery, full life up to more than 10 hours. The back of the instrument can be installed with aluminum crocodile clip, more convenient to carry.
Technical Index
|
Gas name |
measuring range |
Optional range |
|
combustible gas |
0-100%LEL |
0-100%Vol |
|
oxygen |
0-30%Vol |
0-30%Vol |
|
hepatic gas |
0-100PPM |
0-50/200/1000PPM |
|
carbon monoxide |
0-1000PPM |
0-500/2000/5000PPM |
Product Param
| Number of gas species detected | 1-4 types of flammable, toxic and harmful gases |
| Detection accuracy | ≤±5% FS |
| response time | T＜30S |
| Detection method | free diffusion |
| Display | 2.31H LCD display |
| Sensor category | Electrochemistry/infrared detection/catalytic combustion/PID, etc. (depending on the detection gas) |
| Display mode | Multi-channel simultaneous display/single-channel cycle display |
| Charging and batteries | 1800mAh battery with fast charger |
| Alarm record storage | Standard configuration: 3,000 pieces |
| Alarm mode | Buzzer/light/vibration |
| interface language | Chinese and English bilingual switchable |
| Detection unit switching | PPM, %LEL, %Vol, mg/m3, PPB can be switched |
| working temperature | -20℃~50℃ |
| Working humidity | ≤95%RH no condensation |
| work pressure | -30kPa~200kPa |
| Protection level | IP65 dust-proof, splash-proof and explosion-proof |
| Overall dimensions | 73*32*140(mm) |
| weight | About 215g |
Workshop Video
We have the development equipment, testing equipment, production equipment required by the industry; Achieve integration from development to testing to production.
Household gas detector
Voice type 4-in-1 gas detector-PLT840
Cooperative Partner
Product Application Field
We are committed to enable global enterprise users to experience intelligent detection, cloud control, accident warning and other functions; Break through the traditional gas detection industry, and make the detection industry intelligent, data-oriented and interconnected.
What do I need to pay attention to when installing a combustible gas alarm?
What do I need to pay attention to when installing a combustible gas alarm?
Suiping man burns charcoal to keep his parents warm, killing them both.
Suiping man burns charcoal to keep his parents warm, killing them both.
3 Good Habits to Prevent Carbon Monoxide Poisoning in Winter
3 Good Habits to Prevent Carbon Monoxide Poisoning in Winter
Ammonia poisoning suspected after toddler goes to toilet
Ammonia poisoning suspected after toddler goes to toilet
Combustible gas alarms are recommended for installation in homes
Combustible gas alarms are recommended for installation in homes
Gas explosion scene gruesome, the use of gas should pay attention to what details
Gas explosion scene gruesome, the use of gas should pay attention to what details
radiation detector
radiation detector
Analysis of common obstacles to portable ammonia detection alarms
Analysis of common obstacles to portable ammonia detection alarms
Related Products
The company's products have obtained the new national standard fire protection certification, explosion-proof certification, China environmental protection products CCEP certification, CPA certification, CE certification, FCC certification, ROHS certification and other certificates;
The pump-type 4-in-1 gas detector is a safety device that can be used continuously to detect the concentration of leaked gases. It adopts advanced integrated circuit technology, 32-bit embedded microcomputer chip control, and built-in ultra-high-resolution ADC detection chip.The calculation speed is faster, and the test data is more accurate and stable. The detector uses a 2.4. inch high-definition LCD color screen, through the Chinese and English interface and Chinese and English voice prompts, users can quickly understand the product, easy to use and maintain; this detector adopts a high- strength plastic shell, USB charging interface, built-in 5000mAh large-capacity lithium battery and high-end vacuum suction pump, high-quality imported gas sensor, with excellent sensitivity and excellent repeatability, fast response speed, strong anti-interference ability, stable and reliable performance.
GT-PLT219-4 Industrial and Commercial Point type Four in One Detectors
This detector is a safe and convenient device that can continuously detect bodies using a fully explosion-proof design, an inlet sensor and a high-precision core that supports customization.The detector is designed with an adapted battery, which allows uninterrupted detection in special environments such as confined spaces and small spaces, and the large battery can maintain uninterrupted operation for more than 72 hours. The detector can output RS485, 4-20MA, 4G, NB, and LoRa signals for long-distance wireless transmission, and the data can be uploaded to the Intelligent Cloud Platform for remote monitoring and alarming. With advanced technology, excellent performance and high stability, the detector fully demonstrates the advanced performance of intelligent monitoring instruments, which greatly meets the requirements of industrial site safety monitoring for highly reliable equipment.
The handheld portable gas sampling pump is made using advanced electronic technology and sophisticated craftsmanship. It can be connected to our company's composite gas detector or compatible with various imported or domestic gas detectors. It is an ideal vacuum pump for entering confined spaces, such as gas sampling in closed and narrow spaces such as mine city sewage pipelines and ship cabins, to detect toxic and harmful gases in distant spaces. Our company's gas sampling pump only needs to be connected to the gas detector and the electric pump switch can be turned on for continuous remote sampling. It is easy to use and operate, making the gas detector have two detection methods: free diffusion and pump suction.
PLT840-4S voice type four in one gas detector
The portable voice type four in one gas detector is a safe device that can continuously detect the concentration of leaked gases.Advanced integrated circuit technology, embedded microcomputer control,high-quality imported gas sensors, and excellent flexibility Sensitivity and excellent repeatability; Using a dot matrix LCD display, supporting both Chinese and English interfaces and voice prompts in both languages. Users can quickly understand this product, and it is easy to use and maintain; The shell is made of high-strength engineering plastic, which has good seismic resistance.High strength, high-end and atmospheric appearance, and dust-proof, waterproof and explosion-proof functions
