128 Channel Bus Gas Alarm Controller

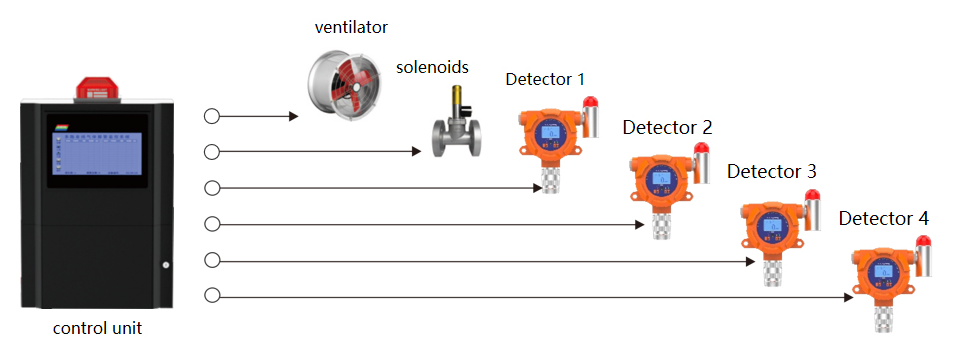

The 128-channel gas alarm controller is a multi-point gas alarm developed by our company for detecting the concentration of gas to be measured in the ambient air. It can be connected to a variety of different gas detectors at the same time and centrally control multiple points at the same time.The system uses a microprocessor as the control unit and a high-precision sensor as the detection transmitter, providing high sensitivity and fast response time.
When the concentration of a substance to be measured in the environment reaches or exceeds the preset alarm value, the controller immediately issues an audible and visual alarm to alert us to take timely safety measures and activate the actuator to control the driving of exhaust or other peripheral equipment to prevent poisoning accidents, explosions, and fires from occurring, thereby safeguarding life and property.The system's human interface uses a large LCD display and a high-level keypad for interactive operation, with a fully Chinese interface for easy operation.
Category ：
Key Word ：
128 Channel Bus Gas Alarm Controller
Product Feature
|
128 channels Up to 128 detectors can be connected |
High-precision chip Liquid crystal display |
Signal transmission Stable and accurate |
Fast operation speed and good stability Intuitive and easy to operate |
Can receive all kinds of detector signals Stable and accurate |
High quality and reliable Anti-interference Fault self-test |
Product Description
The 128-channel gas alarm controller is a multi-point gas alarm developed by our company for detecting the concentration of gas to be measured in the ambient air. It can be connected to a variety of different gas detectors at the same time and centrally control multiple points at the same time.The system uses a microprocessor as the control unit and a high-precision sensor as the detection transmitter, providing high sensitivity and fast response time.
When the concentration of a substance to be measured in the environment reaches or exceeds the preset alarm value, the controller immediately issues an audible and visual alarm to alert us to take timely safety measures and activate the actuator to control the driving of exhaust or other peripheral equipment to prevent poisoning accidents, explosions, and fires from occurring, thereby safeguarding life and property.The system's human interface uses a large LCD display and a high-level keypad for interactive operation, with a fully Chinese interface for easy operation.
Technical Index
Product Param
| Connect the detector | Can connect up to 128 RS485 signal detectors and supporting external control equipment |
| Display mode | LCD display |
| power supply | AC220V±15%50Hz±1% |
| power | ≤10W (host power consumption) |
| Output voltage | DC24V±25% |
| input signal | RS485 |
| Channel output | AC220V/DV24C |
| Relay capacity | DC24V 1A/channel |
| Installation method | Safe on-site wall-mounted installation |
| Applicable detector | Gas detector with RS485 output |
| Communication distance | ≤1000m |
| Alarm mode | Sound and light alarm |
| Protection level | IP54 |
| Working temperature and humidity | 0～+40℃ 10～95%RH no condensation |
| work pressure | 86～108Kpa |
| Overall dimensions | 390*300*110(mm) |
