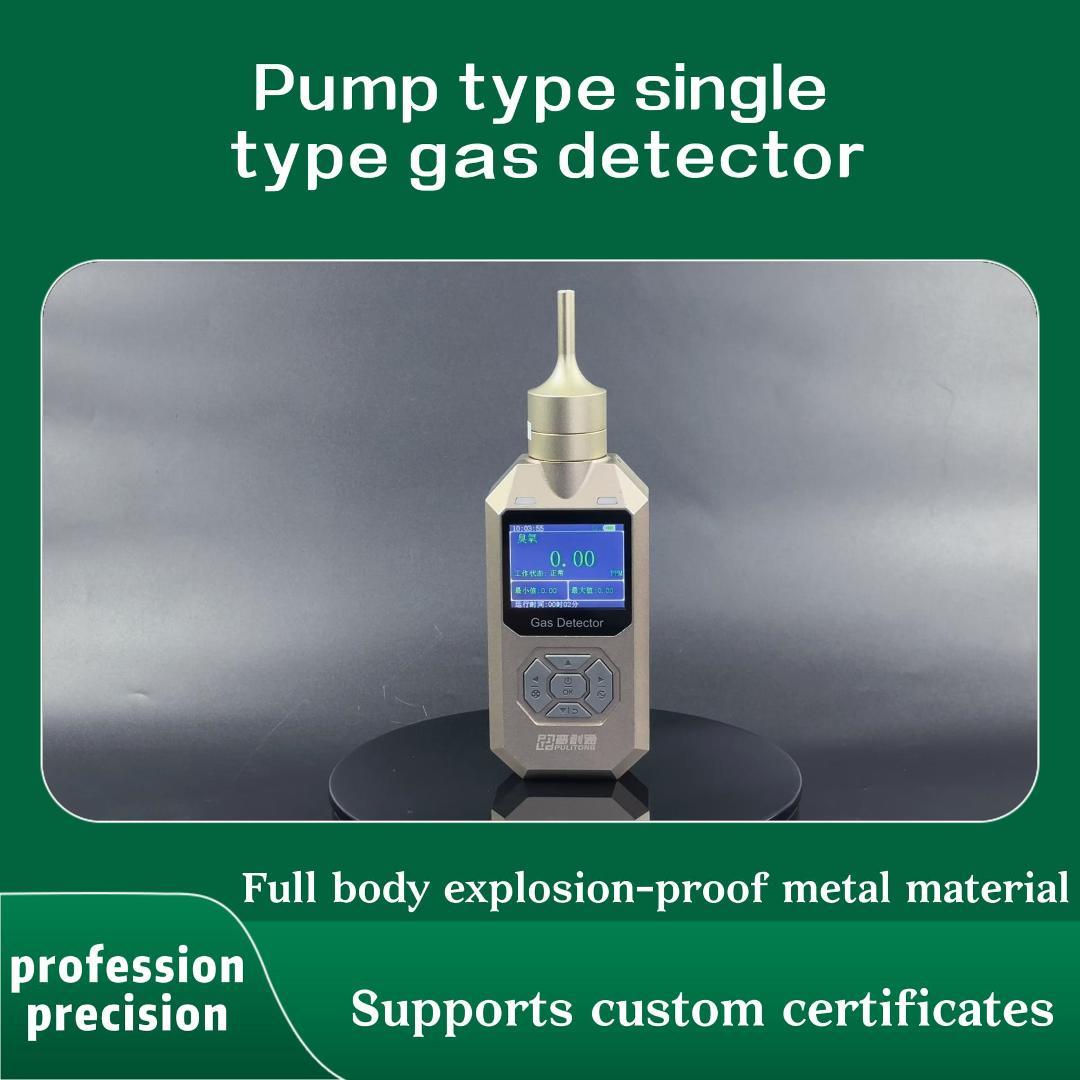

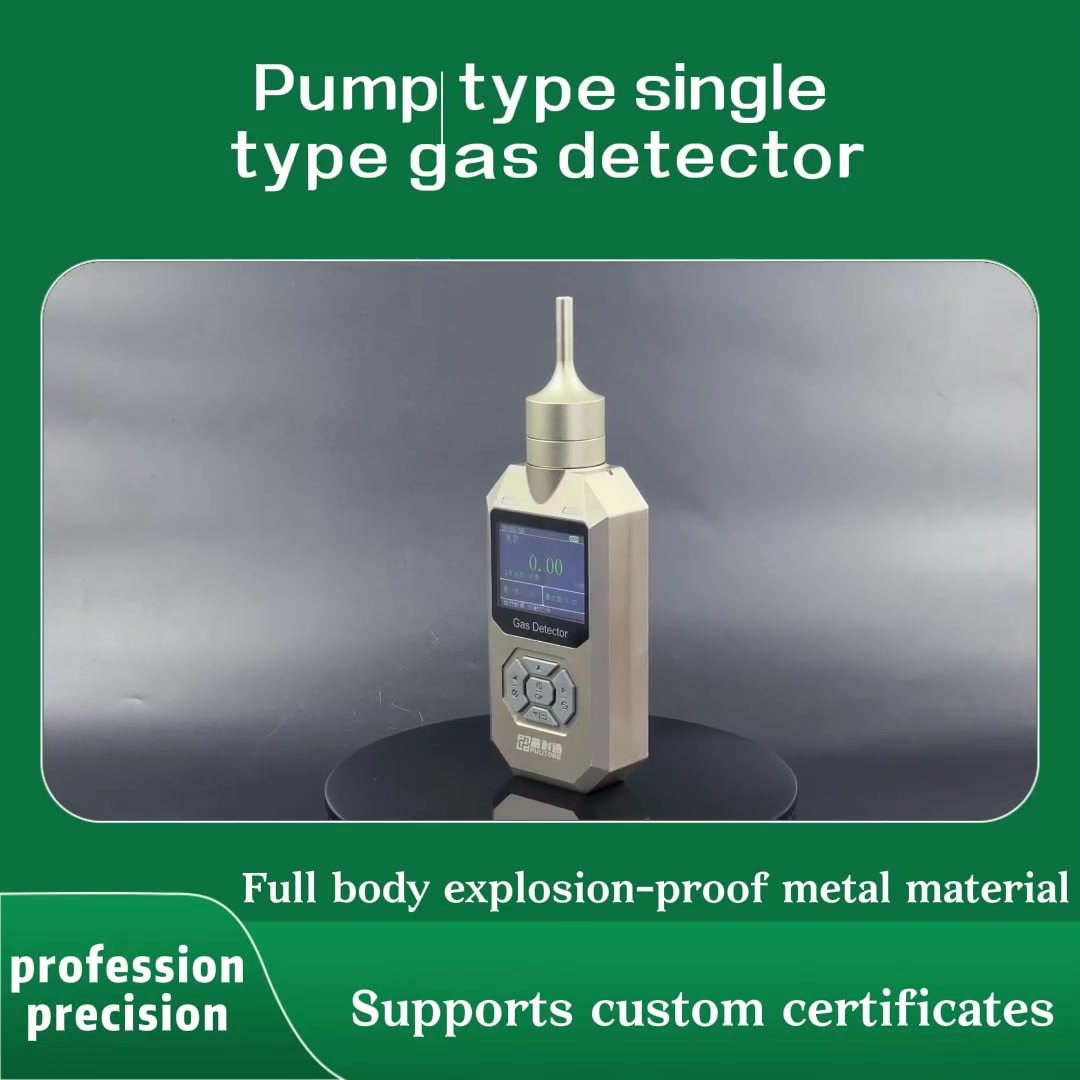

Pump-type single gas detector
Category ：
Key Word ：
Pump-type single gas detector
Product Feature
|
Pump suction type Built-in high-end vacuum suction pump |
Single gas Any one of the detection gases can be customized |
Metal case Aluminum alloy matte shell |
Advanced components Advanced sensors |
Real-time curves Support the plotting of detection data curves |
Two languages Bilingual in English and Chinese |
Product Description
A pump-type single gas detector is a safety device that can be used continuously to detect the concentration of leaked gases. It adopts advanced integrated circuit technology, 32-bit embedded microcomputer chip control,and imported 16-bit ultra-high-resolution ADc detection chip, which has faster calculation speed and more accurate and stable test data. The detector uses a 2.31-inch high-definition LCD color screen, through the Chinese and English interface and Chinese and English voice prompts, users can quickly understand this product, simple to use and maintain, UsB charging interface, built-in 2900mAh large-capacity lithium battery and high-end vacuum suction pump, high-quality imported gas sensor has excellent sensitivity and excellent repeatability; PPMand mg/m3 range units can be switched with one key, with fast response speed, strong anti-interference ability, stable and reliable performance, and is at the leadinglevel in the world.
Technical Index
|
Gas name |
measuring range |
Optional range |
|
combustible gas |
0-100%LEL |
0-100%Vol |
|
oxygen |
0-30%Vol |
0-30%Vol |
|
hepatic gas |
0-100PPM |
0-50/200/1000PPM |
|
carbon monoxide |
0-1000PPM |
0-500/2000/5000PPM |
Product Param
| Detection of gases |
lflammable, toxic and harmful gas |
| Detection accuracy |
≤士 3%FS |
| Response time |
T＜30S |
|
detection mode |
Built-in pump suction |
|
display screen |
2.31-inch high-definition color screen |
| Sensor category | Electrochemical/lnfrared Detection/Catalytic Combustion/PlD, etc. (depending on the gas detected |
| Display mode | Single-channel cycle display/real-time curve display |
| Charging& Batteries | Equipped with a fast charger 2900mAh battery |
| Records storage |
100,000 pieces as standard |
| Alarm mode |
Buzz/Light/Vibrate |
| Interface language |
Bilingual can be switched between Chinese and English |
| Unit switching |
PPM, %LEL, %Vol, and PPB can be switched |
| Operating temperature |
Temperature: -20°C°C~50° |
| Operating humidity |
Humidity:<95%RH non-condensing |
| Work pressure |
Pressure:-30kPa~200kPa |
|
levels of protection |
IP65 dustproof, splash and explosion proof |
| Dimensions |
2.63in*1.37in*8.07in |
|
weight |
Approximately 375.5g |
