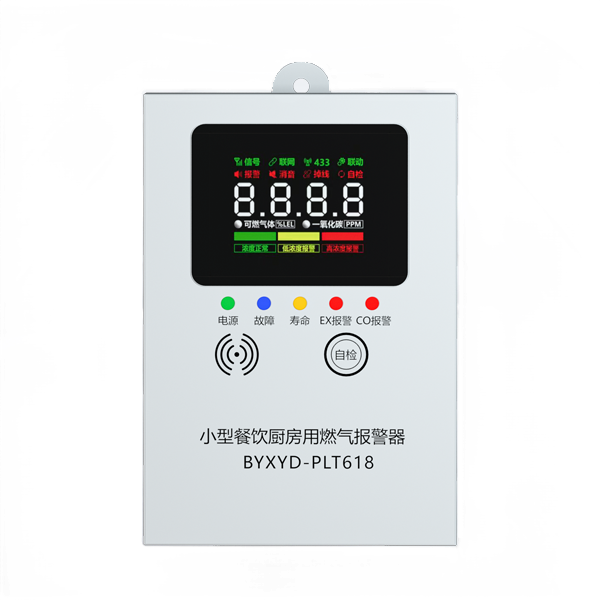

Gas alarms for domestic and small catering kitchens
This is a gas alarm for home use and small restaurant kitchens to detect gas leakage and carbon monoxide from incomplete combustion of gas.It uses an electrochemical sensor for carbon monoxide detection, which has a long life span, good stability, and small sensitivity drift; and a catalytic combustion sensor for gas detection, which has a high sensitivity to liquefied and natural gases, a fast response time, good repeatability and selectivity, a long life span, stable and reliable operation, and good resistance to interferences.
This product is a real-time monitoring device for combustible gas leakage and exceeding the standard, and it is a necessary product for the safety of small restaurant kitchens.An audible and visual alarm is used to alert you when the concentration of combustibles exceeds the limit, reminding you to take effective measures to avoid fire, explosion, poisoning, and other serious incidents, in order to protect your life and property.
Product Feature
|
Kitchen Safety Propane and Carbon Monoxide |
High performance High sensitivity Fast response time |
4G Networking 4G/NB wireless module |
Cloud platform Remote monitoring, alarm, etc. |
LED display Display various data indicators |
Chinese and English bilingual Remote operation |
Product Description
This is a gas alarm for home use and small restaurant kitchens to detect gas leakage and carbon monoxide from incomplete combustion of gas.It uses an electrochemical sensor for carbon monoxide detection, which has a long life span, good stability, and small sensitivity drift; and a catalytic combustion sensor for gas detection, which has a high sensitivity to liquefied and natural gases, a fast response time, good repeatability and selectivity, a long life span, stable and reliable operation, and good resistance to interferences.
This product is a real-time monitoring device for combustible gas leakage and exceeding the standard, and it is a necessary product for the safety of small restaurant kitchens.An audible and visual alarm is used to alert you when the concentration of combustibles exceeds the limit, reminding you to take effective measures to avoid fire, explosion, poisoning, and other serious incidents, in order to protect your life and property.
Technical Index
|
Gas name |
Measuring range |
Alarm value setting |
|
propane |
0-20%LEL |
8%LEL |
|
carbon monoxide |
0-500PPM |
190PPM |
Product Param
| Number of gases detected | Propane and carbon monoxide |
| Detection accuracy | Propane: ±3%LEL Carbon monoxide: ±50ppm |
| response time | Propane: <30 seconds Carbon monoxide: ≤60 seconds |
| Detection method | free diffusion |
| Display | LED display |
| Output signal | Optional 4G/NB |
| display mode | Single channel cycle display |
| power supply | Plastic appearance AC 220V/metal appearance DC 12V |
| Cloud platform | Optional 4G/NB module to connect to the cloud platform |
| Alarm mode | The bee/light is equipped with 4G networking to enable mobile phone text messaging. APP, WeChat program alarm, etc. |
| interface language | Chinese |
| Detection unit switching | %LEL |
| working temperature | -10℃~55℃ |
| Working humidity | ≤95%RH no condensation |
| work pressure | 86kPa～106kPa |
| Protection level | IP65 dust-proof, splash-proof and explosion-proof |
| Overall dimensions | 115*38*165(mm) |
| weight | About 360g |
Workshop Video
We have the development equipment, testing equipment, production equipment required by the industry; Achieve integration from development to testing to production.
Cooperative Partner
Product Application Field
We are committed to enable global enterprise users to experience intelligent detection, cloud control, accident warning and other functions; Break through the traditional gas detection industry, and make the detection industry intelligent, data-oriented and interconnected.
What do I need to pay attention to when installing a combustible gas alarm?
What do I need to pay attention to when installing a combustible gas alarm?
Suiping man burns charcoal to keep his parents warm, killing them both.
Suiping man burns charcoal to keep his parents warm, killing them both.
3 Good Habits to Prevent Carbon Monoxide Poisoning in Winter
3 Good Habits to Prevent Carbon Monoxide Poisoning in Winter
Ammonia poisoning suspected after toddler goes to toilet
Ammonia poisoning suspected after toddler goes to toilet
Combustible gas alarms are recommended for installation in homes
Combustible gas alarms are recommended for installation in homes
Gas explosion scene gruesome, the use of gas should pay attention to what details
Gas explosion scene gruesome, the use of gas should pay attention to what details
radiation detector
radiation detector
Analysis of common obstacles to portable ammonia detection alarms
Analysis of common obstacles to portable ammonia detection alarms
Related Products
The company's products have obtained the new national standard fire protection certification, explosion-proof certification, China environmental protection products CCEP certification, CPA certification, CE certification, FCC certification, ROHS certification and other certificates;
PLZ-8600 Negative Ion Detector
<p>The Negative Air Ion Tester is a high precision, professional air ion testing and analyzing instrument.With its unique cylindrical air collector, the Negative Ion Tester actively collects negative airborne particles from the atmosphere with a stable airflow, and the advanced negative-pressure dedusting structure ensures stable operation over a long period of time.<br /> The product has strong environmental adaptability, high testing accuracy, stable charge collection, a wide range and high testing accuracy.It is widely used in a variety of negative terminal inspection industries.<br /> The large display makes it easy to read various values, including temperature, humidity, and formaldehyde, making it simple and convenient to use.</p>
PLT-TH1000 Online Monitoring and Pretreatment System Series
The PLT-TH1000 Body Online Monitoring Pretreatment System is suitable for body detection and analysis in harsh and complex environments such as dust, high temperatures, and high humidity, etc. If the dust content of the body under test is high, regular manual maintenance and cleaning of the filter is required.), micro-sampling distance of 10 meters (optional vacuum sampling pump, up to 70 meters sampling), automatic cooling, automatic water discharge, tar filtration, flow rate adjustment and other functions. The product is widely used in fire fighting, environmental protection, combustion, warehousing, metallurgy, metallization, mining, coking, pharmaceuticals, power, sewage treatment, laboratories, scientific research institutes, energy and power, etc., where continuous on-line detection of flammable, explosive, toxic, hazardous, and volatile gases is required in harsh environments such as high-temperature and high-moisture dusts.

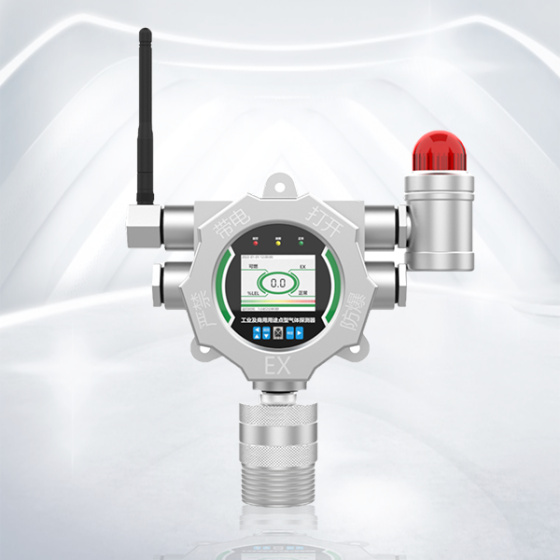

GT-PLT319 4G Wireless Industrial and Commercial Point Gas Detector
