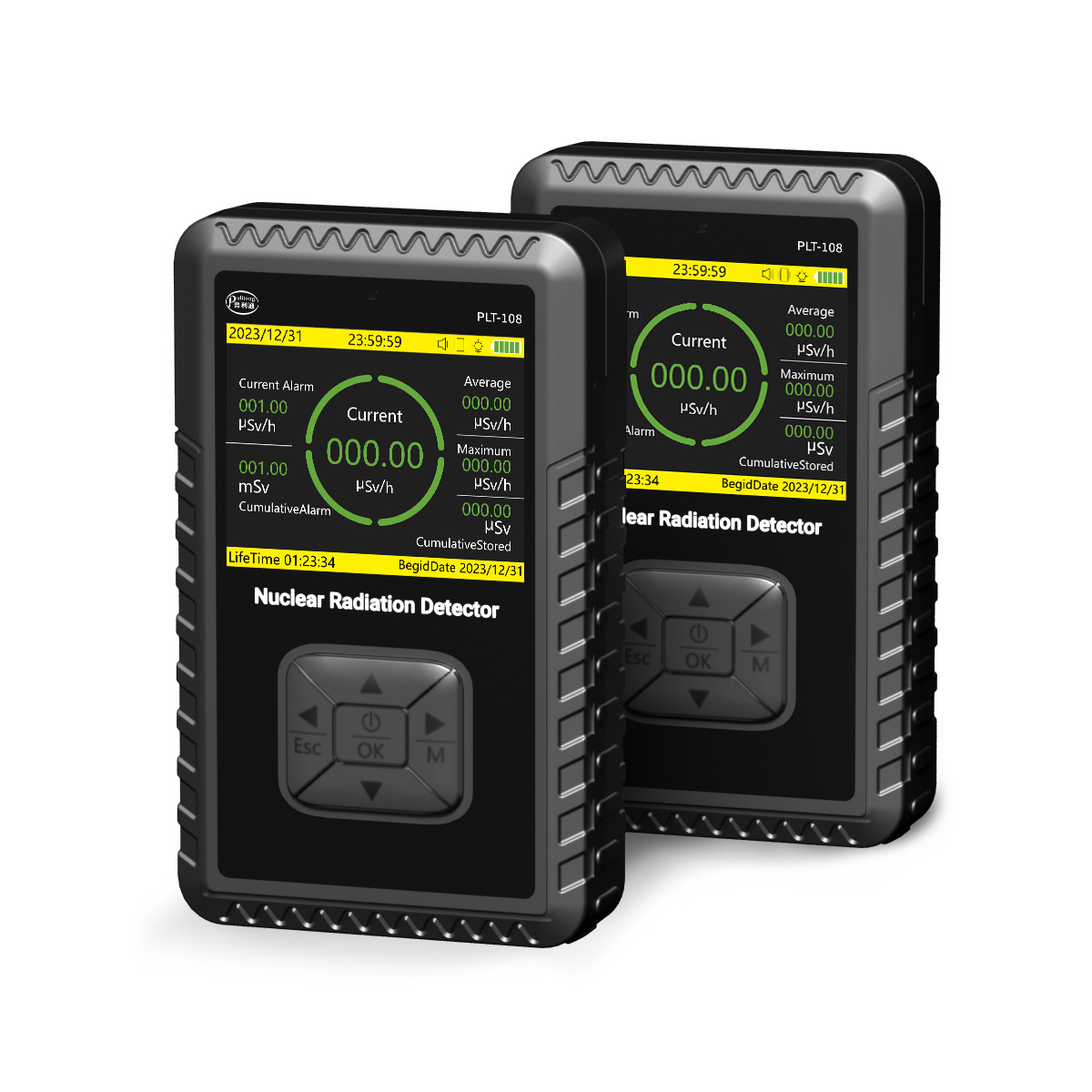

Portable Geiger Counter Nuclear Radiation Detector

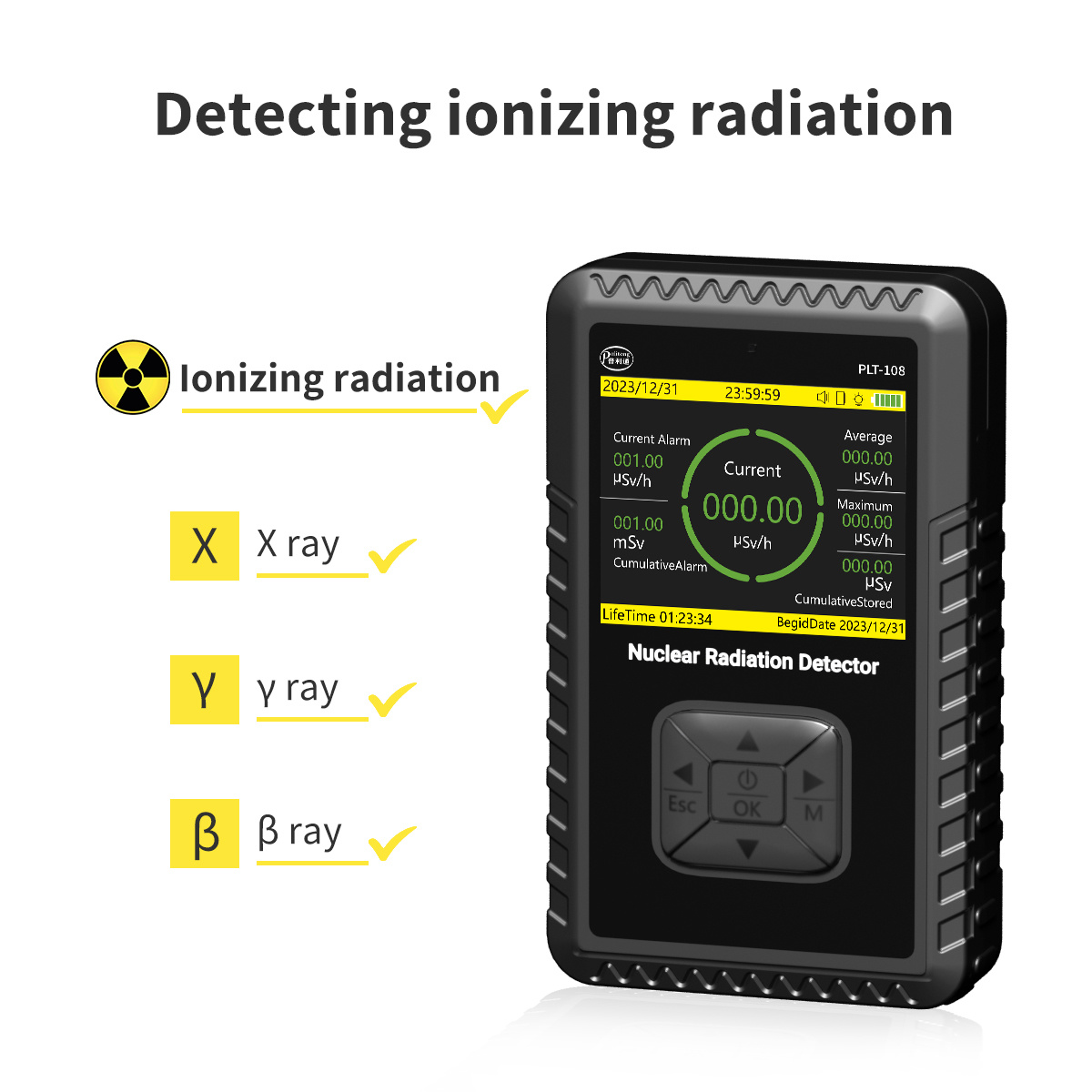

This product uses a Geissler counter, a counter that detects the intensity of ionizing radiation (x-rays, gamma rays, beta rays, etc.).A tube or small room is used as the probe. When a certain voltage is applied to the probe, an electrical pulse of the same magnitude is generated for each pair of ionized rays in the tube and recorded by the connected electronics, thus measuring the number of rays per unit of time; the alarm threshold measurement rate can be selected at any time.
It can be used in a wide range of applications, including seafood testing, imported products testing, conformance testing, radiation source testing, cosmetic testing, medical radiation testing, and personal protection testing.
Category ：
Key Word ：
Product Feature
|
X-rays Frequent ionizing radiation |
Gamma rays Frequent ionizing radiation |
Beta rays Frequent ionizing radiation |

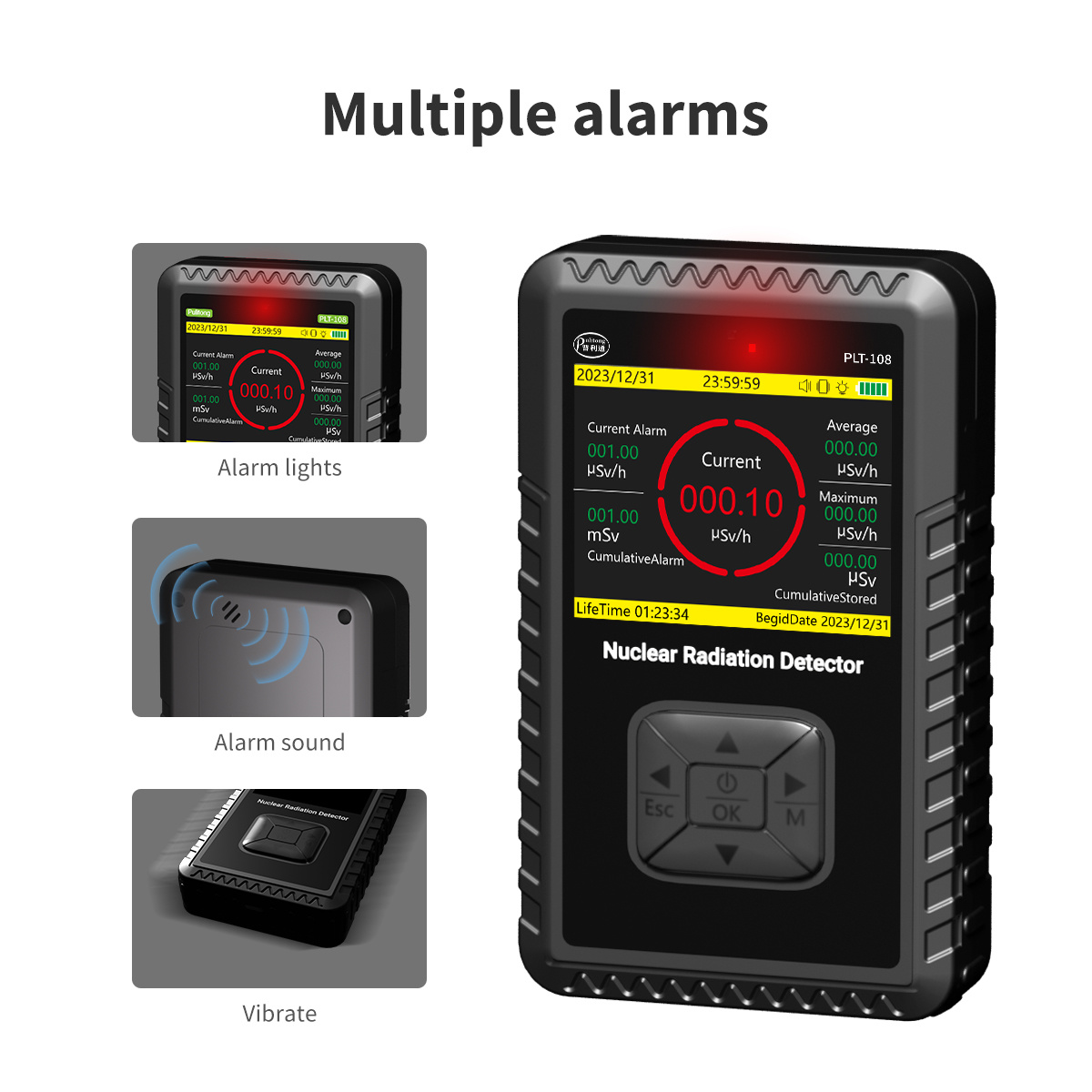

Triple Alarm Audible and visual alarms |

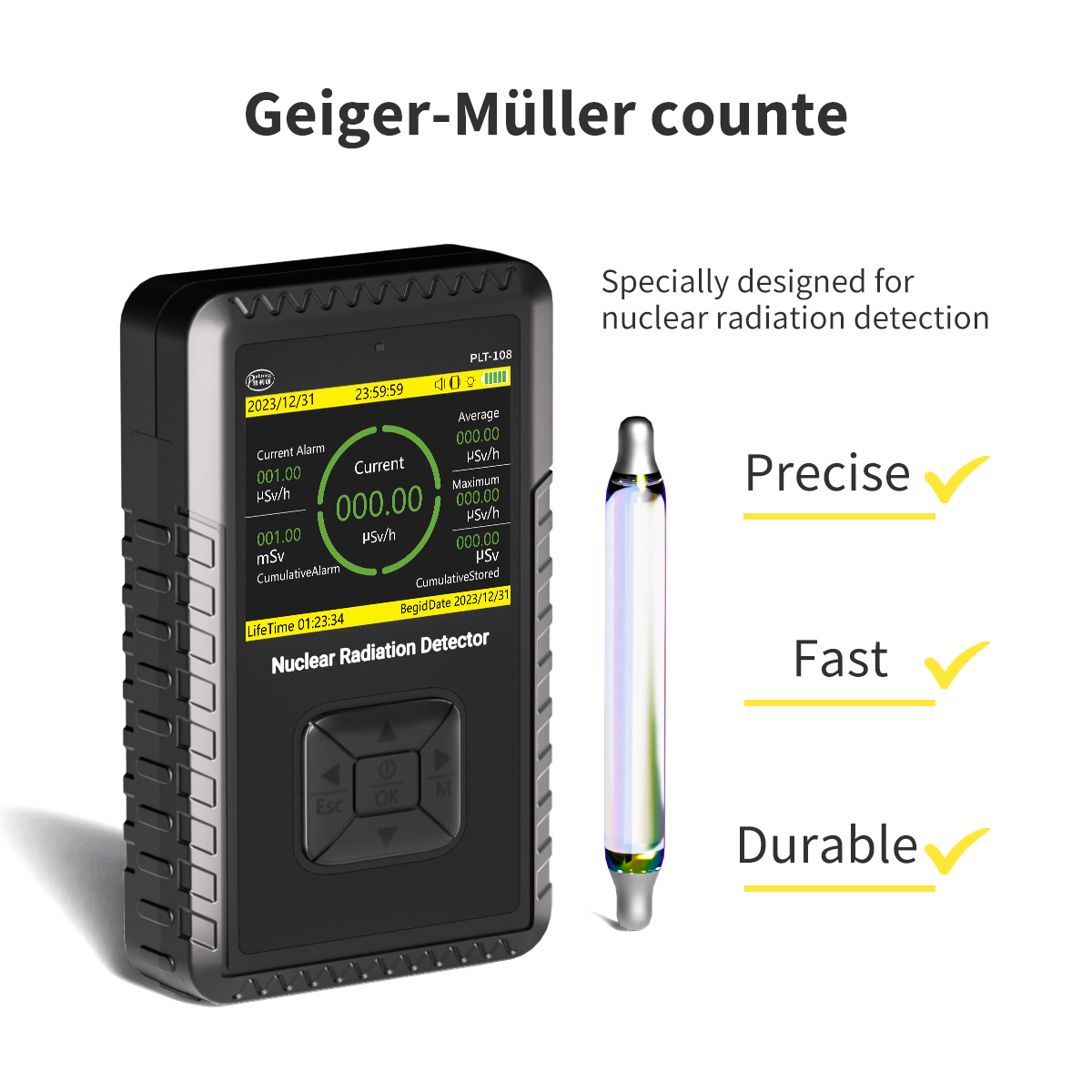

Precise Detection GM Tube Technology |
Wide range of uses Suitable for a wide range of applications |
Product Description
This product uses a Geissler counter, a counter that detects the intensity of ionizing radiation (x-rays, gamma rays, beta rays, etc.).A tube or small room is used as the probe. When a certain voltage is applied to the probe, an electrical pulse of the same magnitude is generated for each pair of ionized rays in the tube and recorded by the connected electronics, thus measuring the number of rays per unit of time; the alarm threshold measurement rate can be selected at any time.
It can be used in a wide range of applications, including seafood testing, imported products testing, conformance testing, radiation source testing, cosmetic testing, medical radiation testing, and personal protection testing.
Technical Index
|
Ray name |
dose current rate |
cumulative dose equivalent |
|
x-ray |
0.00-10000μSv/h (10mSv/h) |
0.00μSv-500.0mSv |
|
gamma rays |
0.00-10000μSv/h (10mSv/h) |
0.00μSv-500.0mSv |
|
beta rays |
0.00-10000μSv/h (10mSv/h) |
0.00μSv-500.0mSv |
Product Param
| Product name | Nuclear radiation detector |
| sensor | Energy compensation GM tube (Geiger counter) |
| Detection ray type | x-rays, gamma rays, rays |
| dose current rate | 0.00-10000uSv/h(10mSv/h) |
| cumulative dose equivalent | 0.00uSv-500.0mSv |
| energy range | 48keV-1.5Mev<30%(for 137Cs-) |
| Sensitivity | 80CPM/uSv(for Co-60) |
| dosage unit | uSv/h, uGy/h, mR/h, CPS, CPM |
| Alarm mode | sound, vibration, light |
| operating language | Chinese/English |
| Working power supply | DC3.7V1800mA |

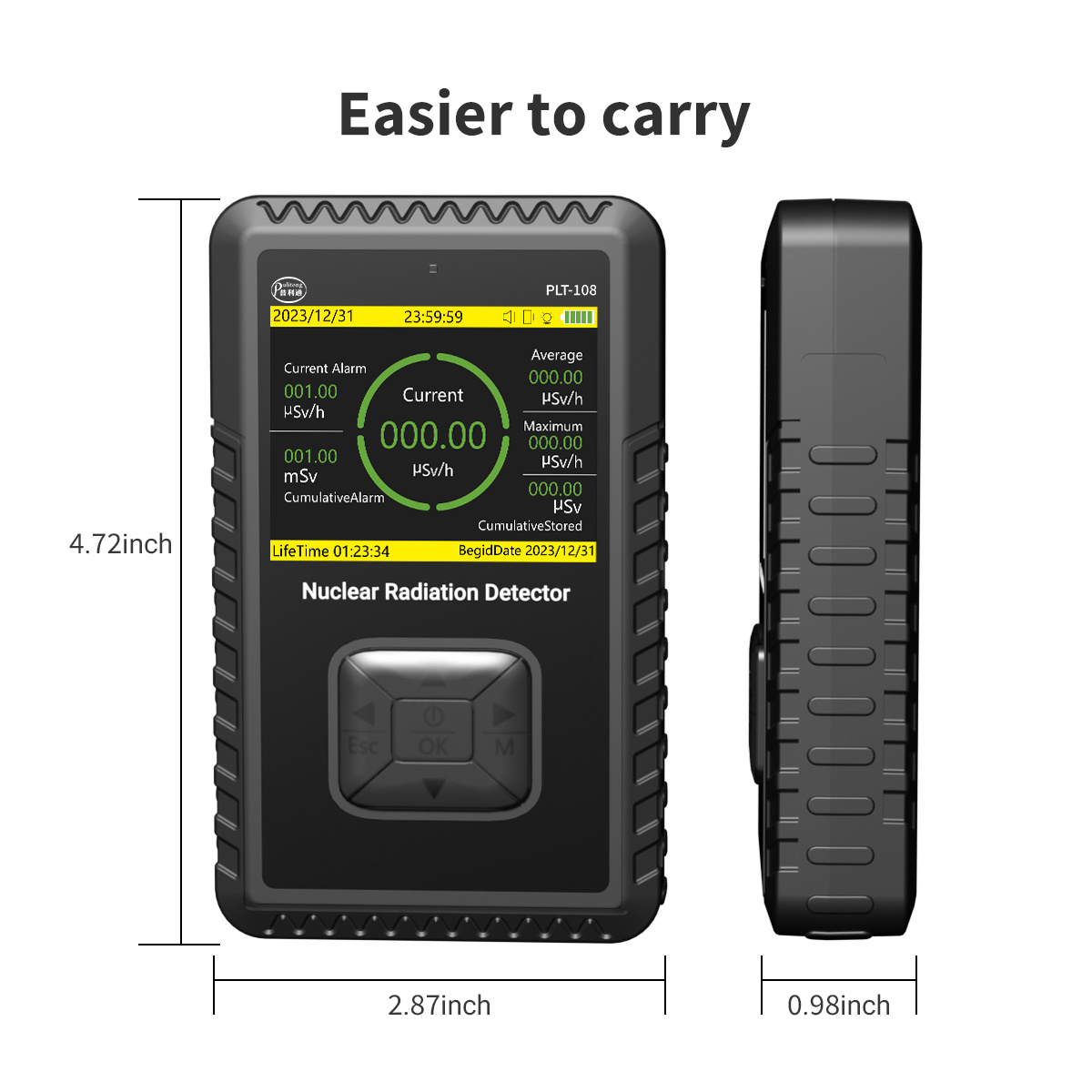

| Product size | 120x73x25mm |
