Pump-type 4-in-1 gas detector
Category ：
Key Word ：

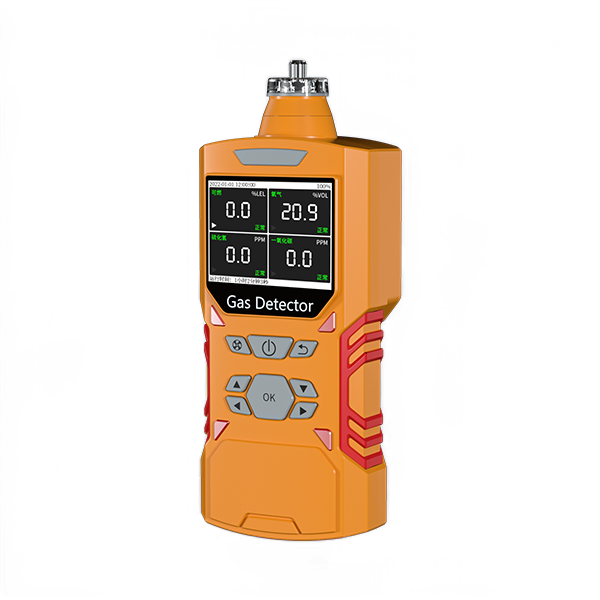

Pump-type 4-in-1 gas detector
Product Feature
|
Four in one Customize any of the four detection gases |
High-precision components Original high-precision components |
Triple alarm Acousto-optic shock alarm |
Accurate detection Accuracy up to ≤±3% |
Data storage The alarm record can be stored up to 100000 pieces |
Two languages Bilingual in English and Chinese |
Product Description
The pump-type 4-in-1 gas detector is a safety device that can be used continuously to detect the concentration of leaked gases. It adopts advanced integrated circuit technology, 32-bit embedded microcomputer chip control, and built-in ultra-high-resolution ADC detection chip.The calculation speed is faster, and the test data is more accurate and stable. The detector uses a 2.4. inch high-definition LCD color screen, through the Chinese and English interface and Chinese and English voice prompts, users can quickly understand the product, easy to use and maintain; this detector adopts a high- strength plastic shell, USB charging interface, built-in 5000mAh large-capacity lithium battery and high-end vacuum suction pump, high-quality imported gas sensor, with excellent sensitivity and excellent repeatability, fast response speed, strong anti-interference ability, stable and reliable performance.
Technical Index
|
Gas name |
measuring range |
Optional range |
| Carbon dioxide | 0-2000、5000ppm | 0-2000、5000ppm |
| Combustible gas | 0-100%LEL、5%Vol | 0-100%LEL、5%Vol |
| Methane | 0-100%LEL、5%Vol | 0-100%LEL、5%Vol |
| Ethane | 0-1000、5000、10000ppm、3%Vol、100%LEL | 0-1000、5000、10000ppm、3%Vol、100%LEL |
| propane | 0-1000、5000、10000ppm、2、100%Vol、100%LEL | 0-1000、5000、10000ppm、2、100%Vol、100%LEL |
| carbon monoxide | 0-500、1000、2000ppm | 0-500、1000、2000ppm |
| hydrogen sulfide | 0-10、50、100、200ppm | 0-10、50、100、200ppm |
| oxygen | 0-5%、25%、30%Vol | 0-5%、25%、30%Vol |
| Nitrogen | 0-100%.Vol | 0-100%.Vol |
| Ammonia | 0-100、1000、5000、10000ppm | 0-100、1000、5000、10000ppm |
| Chlorine | 0-10、20、50、200ppm | 0-10、20、50、200ppm |
| hydrogen | 0-100、500、1000、2000、40000ppm | 0-100、500、1000、2000、40000ppm |
| Nitrogen | 0-100%.Vol | 0-100%.Vol |
| Argon | 0-10%、50%、100%、99.999%Vol | 0-10%、50%、100%、99.999%Vol |
| xenon | 0-10%、50%、100%、99.999%Vol | 0-10%、50%、100%、99.999%Voll |
| formaldehyde | 0-10、20、50、100、200ppm | 0-10、20、50、100、200ppm |
| ozone | 0-10、20、50、100ppm | 0-10、20、50、100ppm |
| nitric oxide | 0-20、50、100、250ppm | 0-20、50、100、250ppm |
| nitrogen dioxide | 0-20、50、100ppm | 0-20、50、100ppm |
| NOx | 0-20、50、100、200ppm | 0-20、50、100、200ppm |
| sulfur dioxide | 0-20、50、100ppm | 0-20、50、100ppm |
| Ethylene oxide | 0-10、50、100、500、1000ppm | 0-10、50、100、500、1000ppm |
| Phosphine | 0-5、20、50、100、1000ppm | 0-5、20、50、100、1000ppm |
| hydrogen chloride | 0-10、20、50、100、200ppm | 0-10、20、50、100、200ppm |
| hydrogen cyanide | 0-10、30、100ppm | 0-10、30、100ppm |
| Phosgene | 0-1.000、10、100ppm | 0-1.000、10、100ppm |
| Chlorine dioxide | 0-1.00、10、50、200ppm | 0-1.00、10、50、200ppm |
The table shows only some of the gases that can be detected. If you want to know more, please contact me on WhatsApp.
Product Param
| Detection of gases | 1-4 kinds of flammable, toxic and harmful gases |
| Detection accura | ± 3% FS |
| Response time |
T＜30S |
| Detection method | Built-in pump-suction |
| display screen | 2.31-inch high-definition color screen |
| Sensor category | Electrochemical/infrared Detection/Catalytic Combustion/PlD, etc. (depending on the gas detected) |
| Display mode | Multi-channel simultaneous display/single-channel cycle display/real-time curve display |
| Charging & Batteries | Equipped with a fast charger |
| Records storage | 100,000 pieces as standard |
| Alarm mode | Buzz/Light/Vibrate |
| Interface language | Bilingual can be switched between Chinese and English |
| Unit switching | PPM, %LEL, %Vol, and PPB can be switched |
| Operating temperature | Temperature: -20°C°C~50°C |
| Operating humidity | Humidity: <95%RH non-condensing |
|
Working pressure |
Pressure:-30kPa~200kPa |
| Ingress protection | IP65 dustproof, splash and explosion proof |
| Dimensions | 2.95in*1.85in*7.48in |
|
Weight |
About 375.5g |
Workshop Video

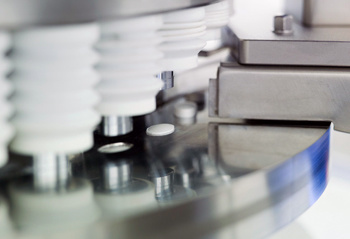

We have the development equipment, testing equipment, production equipment required by the industry; Achieve integration from development to testing to production.

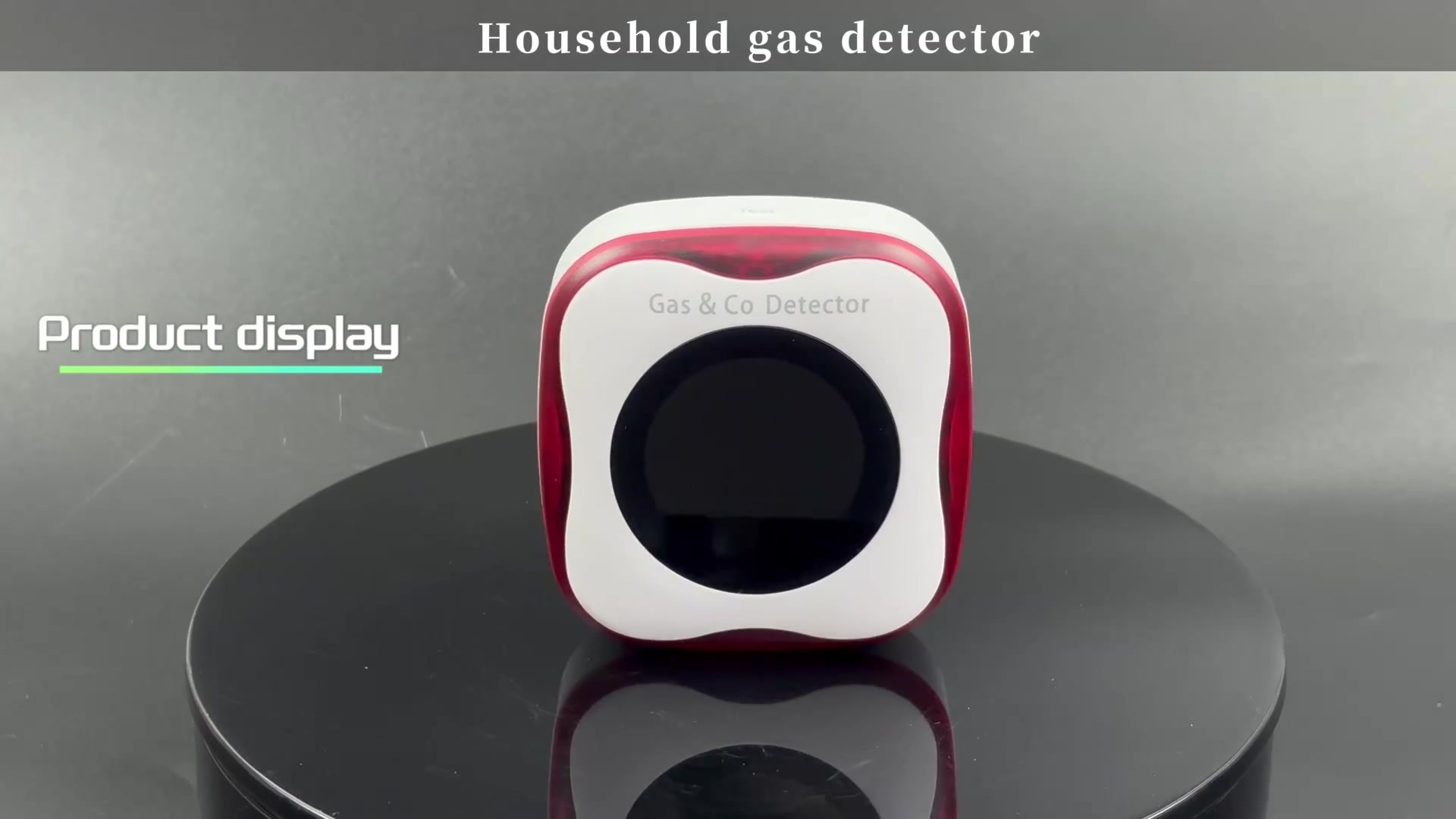

Household gas detector

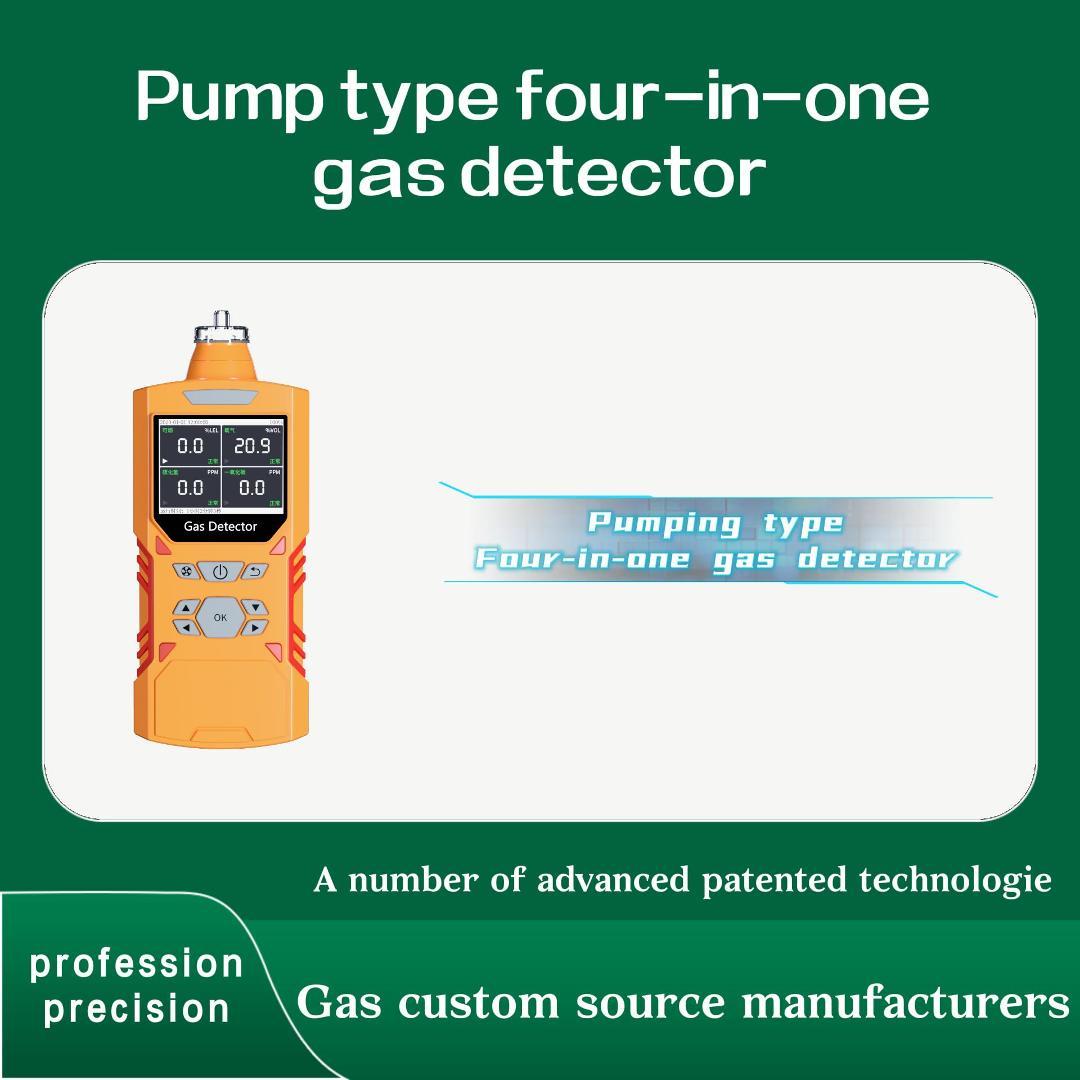

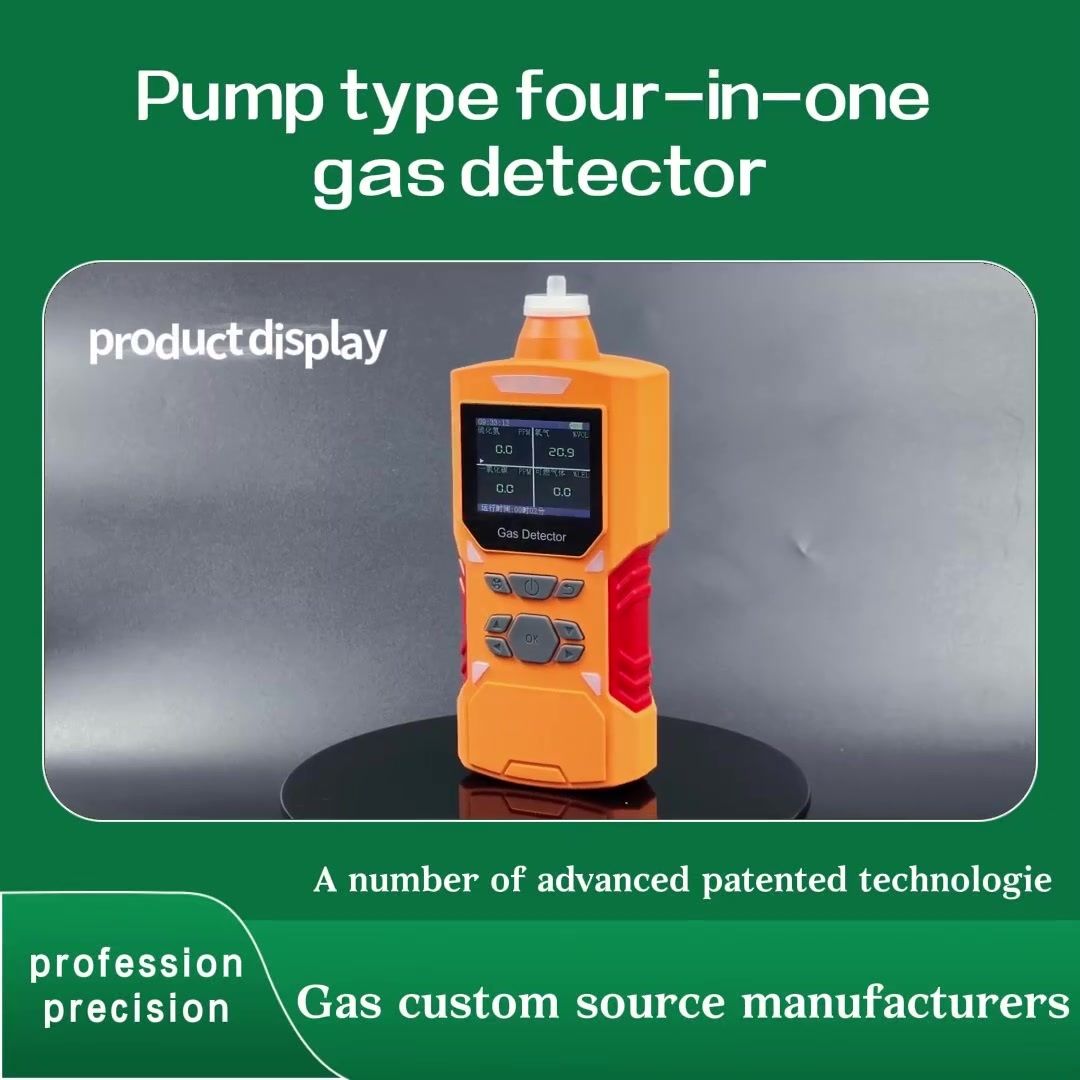

Pump type four-in-onegas detector
