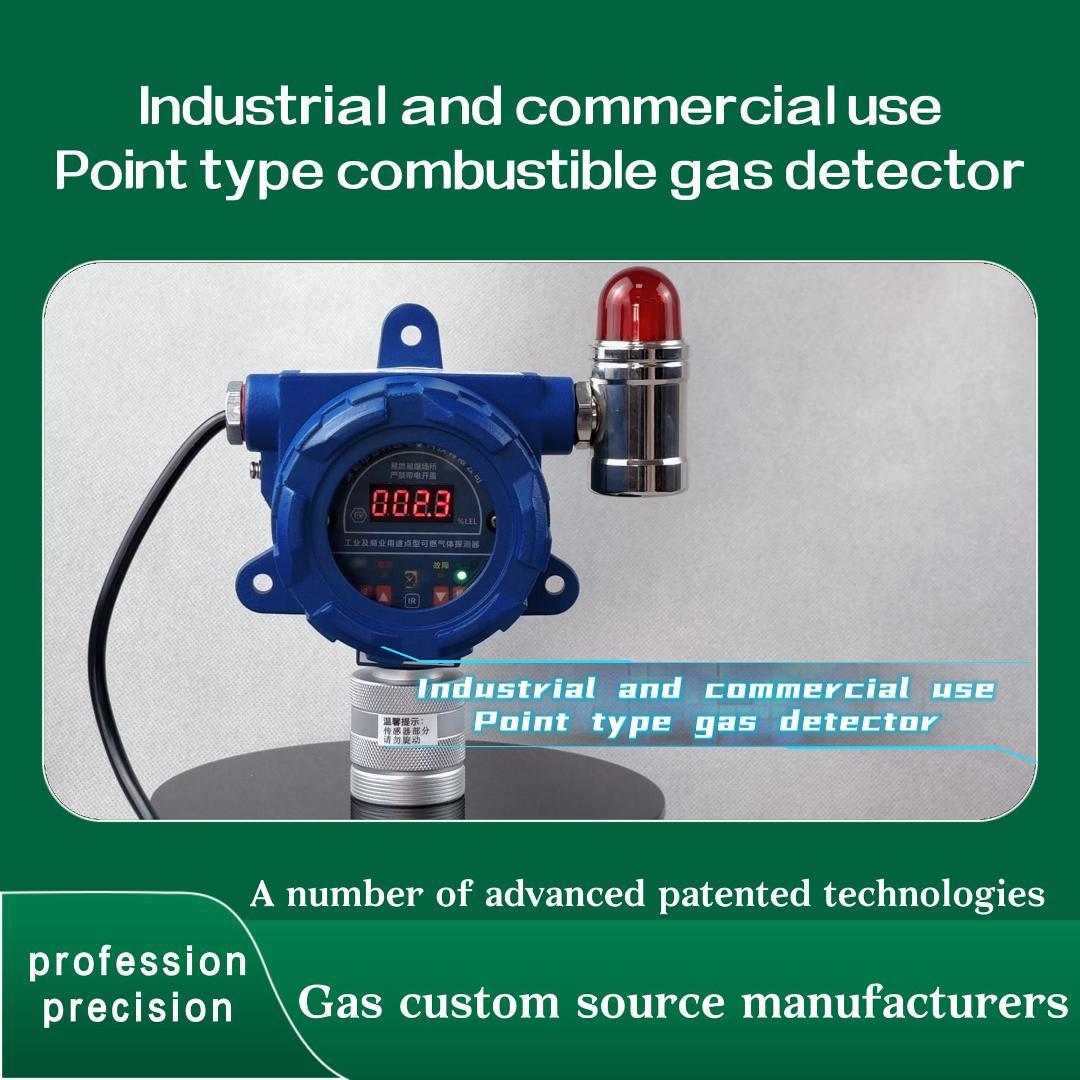

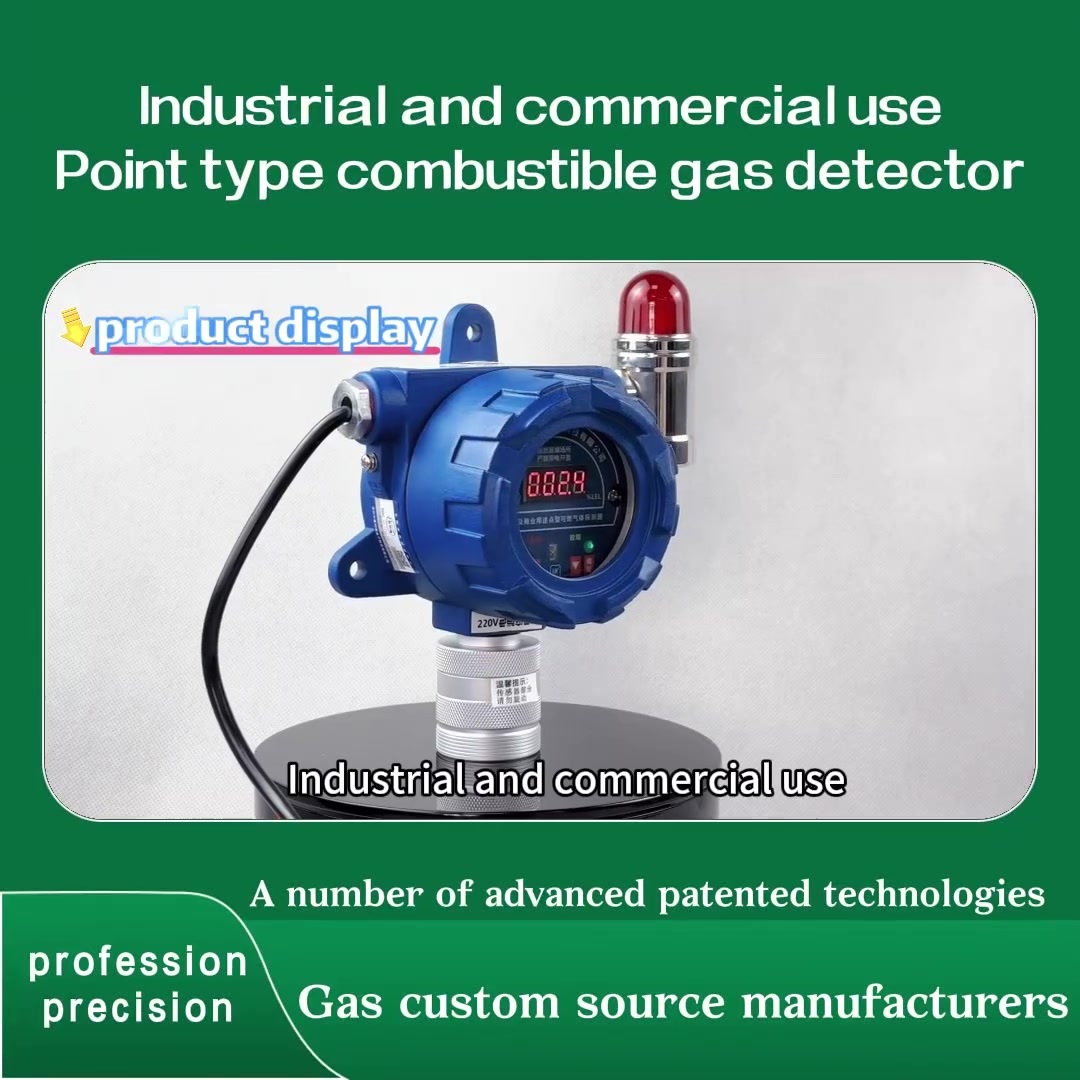

GTY-PLT229 220V Industrial Digital Display Combustible Gas Detector
This detector can be widely used in metallurgy, oil, chemicals, mining, coking, municipal government, environmental protection, pharmaceuticals, power, ships, sewage treatment, and other places where flammable, explosive, toxic and hazardous substances need to be detected continuously.
The detector adopts explosion-proof design and inlet sensors with high sensitivity, fast response speed, strong resistance to noise, stable and reliable performance; the detector outputs RS485 signals, which can be connected to DCS, PLC and other control systems.
Category ：
Key Word ：
GTY-PLT229 220V Industrial Digital Display Combustible Gas Detec
Product Feature
|
Gas Customization Detecting gas can be customized |
220V direct plug Plug and Play |
Imported components Original imported sensors |
Signal Transmission RS485/4 ~ 20MA |
Metal housing Explosion-proof design |
Excellent quality High sensitivity Long life span |
Product Description
This detector can be widely used in metallurgy, oil, chemicals, mining, coking, municipal government, environmental protection, pharmaceuticals, power, ships, sewage treatment, and other places where flammable, explosive, toxic and hazardous substances need to be detected continuously.
The detector adopts explosion-proof design and inlet sensors with high sensitivity, fast response speed, strong resistance to noise, stable and reliable performance; the detector outputs RS485 signals, which can be connected to DCS, PLC and other control systems.
Technical Index
|
Gas name |
measuring range |
Optional range |
|
combustible gas |
0-100%LEL |
0-100%Vol |
|
oxygen |
0-30%Vol |
0-30%Vol |
|
hepatic gas |
0-100PPM |
0-50/200/1000PPM |
|
carbon monoxide |
0-1000PPM |
0-500/2000/5000PPM |
Product Param
| Number of gases detected | 1 kind of flammable, explosive, toxic and degassing product |
| Detection accuracy | ±3%LEL |
| response time | T<30S |
| Prosecution method | free diffusion |
| Display | Digital tube display |
| Output signal | 4~20mA RS485 optional |
| display mode | Single channel display |
| Working voltage | AC 220V |
| Debugging mode | Button or infrared remote control |
| Measuring range | 0~1009%LEL |
| Alarm mode | Sound and light alarm |
| Principle of inspection | Electrochemistry, catalytic combustion, infrared, thermal conductivity, PID photoion, etc. (depending on the detection gas) |
| Explosion-proof level | Exd IIC T6 GB |
| Protection level | IP65 |
| working environment | Temperature: -10~50℃ Humidity: 10~95%RH without condensation |
| Sensor life | 3 years |
| Overall dimensions | 159*140*75(mm) |
| weight | About 1.6kg |
