PLT2100 Combustible Gas Aalarm Controller
Category ：
Key Word ：
PLT2100 Combustible Gas Aalarm Controller
Product Feature
|
4-8 channels Up to 8 detectors |
High precision chip Wide range of applications |
Signal transmission Double alarm |
Fast operation speed and good stability Widely used in various scenes |
Receives signals from various detectors Sound and light alarm |
Various connections Can be linked with a variety of equipment |
Product Description

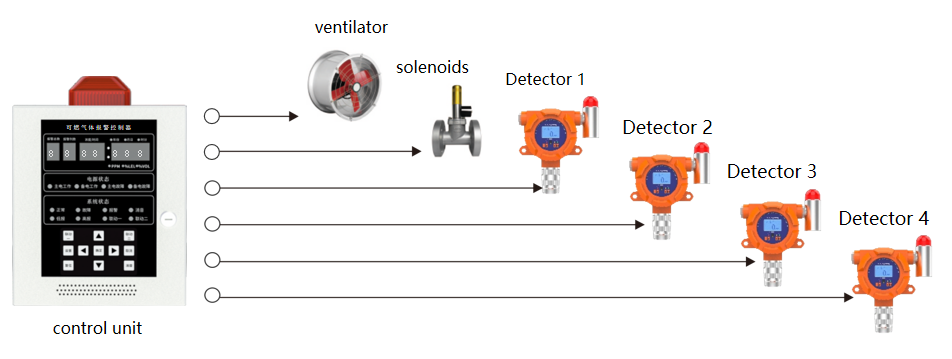

This series is a 4-8 channel combustible gas alarm controller.It consists of a metal housing, a switching power supply board, a connector board, and an alarm (batteries are optional).When a measured substance or liquid evaporates in the air, the detector creates a current signal that is proportional to the concentration of the measured substance in the air, and the signal is transmitted to the controller to display the concentration of the measured substance after processing.When the concentration of the measured substance reaches or exceeds the set value, the controller issues an acoustic and optical alarm signal and outputs the relevant control signals to activate the appropriate control devices so as to prevent the occurrence of a serious accident.The modular design of the unit allows it to be used in conjunction with appropriate detectors to monitor a wide range of fuels, including flammable, toxic and oxygenated fuels.
Technical Index
Product Param
| Connect the detector | Can connect up to 8 RS485 signal detectors and supporting external control equipment |
| Display mode | Digital tube display |
| power supply | AC220V±15% 50Hz±1% |
| power | ≤10W (host power consumption) |
| Output voltage | DC24V±15% |
| input signal | RS485 |
| Channel output | AC220V/DV24C |
| Relay capacity | DC24V 1A/channel |
| Installation method | Safe on-site wall-mounted installation |
| Applicable detector | Gas detector with RS485 outpu |
| communication distance | ≤1200m |
| Alarm mode | Sound and light alarm |
| Implementation standards | GB 16808-2008 |
| Working temperature and humidity | -20～+50℃ 10～95%RH no condensation |
| work pressure | 86~106Kpa |
| Overall dimensions | 250*190*63(mm) |
