PLT200-4 Gas Alarm Controller
Category ：
Key Word ：
PLT200-4 Gas Alarm Controller
Product Feature
|
2-4 channels Up to 4 detectors |
High precision chip Wide range of applications |
Signal transmission Dual alarm |
Fast operation speed and good stability Widely used in various scenes |
Receives signals from various detectors Sound and light alarm |
Various connections Can be linked with a variety of equipment |
Product Description

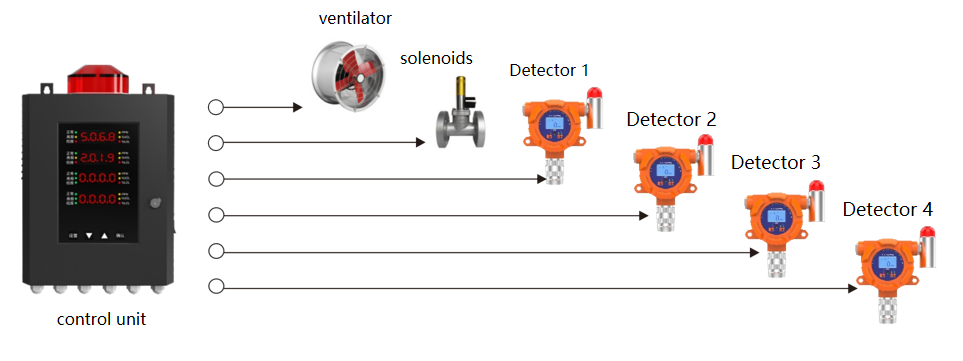

This series is a 2- to 4-channel body alarm controller.It consists of a common metal case, a switching power supply board, a connector board, and an alarm (batteries are optional).The body alarm controller (hereinafter referred to as the controller) can be combined with our body detectors with 4-20mA current output or RS485 signal output to form a body alarm control system for industrial use.When a measured substance or liquid evaporates in the air, the detector creates a current signal that is proportional to the concentration of the measured substance in the air, and this signal is transmitted to the controller, which processes it and displays the concentration of the measured substance.When the concentration of the measured substance reaches or exceeds the set value, the controller emits an acoustic and optical alarm signal and the relevant control signals to activate the corresponding control devices, thus preventing the occurrence of a serious accident.The product is modular in design, i.e., one gas detector for each channel is used in conjunction with the appropriate detector.
Technical Index
Product Param
| Connect the detector | Up to four RS485 or 4~20mA signal detectors can be connected |
| Display mode | Digital tube display |
| power supply | AC220V±15% 50Hz±1% |
| power | ≤10W (host power consumption) |
| Output voltage | DC24V±15% |
| input signal | RS4854~20mA |
| Channel output | AC220V/DV24C |
| Relay capacity | DC24V 1A/channel |
| Installation method | Safe on-site wall-mounted installation |
| Applicable detector | Gas detector with RS485/4~20mA output |
| Communication distance | ≤1200m |
| Alarm mode | Sound and light alarm |
| Implementation standards | GB 16808-2008 |
| Working temperature and humidity | -20～+50℃ 10～95%RH No condensation |
| work pressure | 86~106Kpa |
| Overall dimensions | 250*190*63(mm) |
