PLT2000 Combustible Gas Aalarm Controller
This series is an 8- to 16-channel body alarm controller.It consists of a general-purpose metal case, a switching power supply board, a connector board, and an alarm (each with an optional battery).
It consists of a metal case, a switching power supply board, a connector board, and an alarm (batteries are optional).The Body Alarm Controller (hereinafter referred to as the Controller) can be used with our RS485 signal output body detectors to form a body alarm control system for industrial use.When a measured substance or liquid evaporates in the air, the detector creates a current signal that is proportional to the concentration of the measured substance in the air, and this signal is transmitted to the controller, which processes it and displays the concentration of the measured substance.When the concentration of the measured substance reaches or exceeds the set value, the controller issues an acoustic and optical alarm signal and outputs the relevant control signals to activate the corresponding control devices, thus preventing the occurrence of a serious accident.The modular design of the unit allows the monitoring of a wide range of gases, including combustible, toxic and oxygen gases, in conjunction with the appropriate detectors.
Category ：
Key Word ：
PLT2000 Combustible Gas Aalarm Controller
Product Feature
|
8-16 channels Up to 16 detectors can be connected |
Self-test function Wide range of applications |
Signal transmission Dual alarm |
Power on self-test Widely used in various scenes |
Receive signals from various detectors Sound and light alarm |
Multiple connections Can be linked with a variety of equipment |
Product Description
This series is an 8- to 16-channel body alarm controller.It consists of a general-purpose metal case, a switching power supply board, a connector board, and an alarm (each with an optional battery).

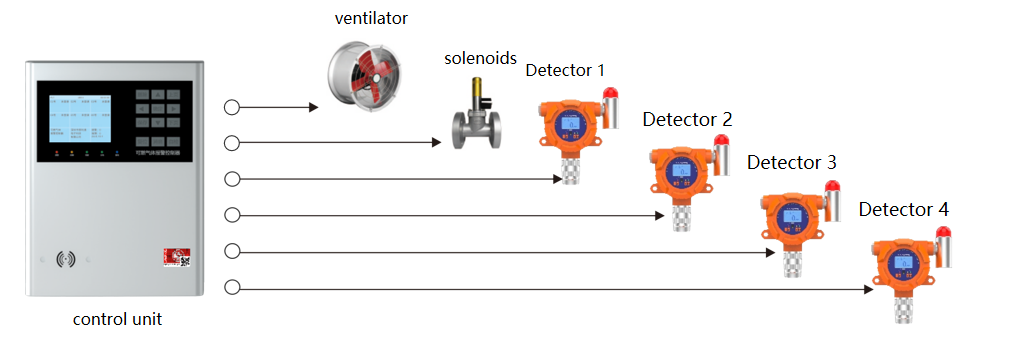

It consists of a metal case, a switching power supply board, a connector board, and an alarm (batteries are optional).The Body Alarm Controller (hereinafter referred to as the Controller) can be used with our RS485 signal output body detectors to form a body alarm control system for industrial use.When a measured substance or liquid evaporates in the air, the detector creates a current signal that is proportional to the concentration of the measured substance in the air, and this signal is transmitted to the controller, which processes it and displays the concentration of the measured substance.When the concentration of the measured substance reaches or exceeds the set value, the controller issues an acoustic and optical alarm signal and outputs the relevant control signals to activate the corresponding control devices, thus preventing the occurrence of a serious accident.The modular design of the unit allows the monitoring of a wide range of gases, including combustible, toxic and oxygen gases, in conjunction with the appropriate detectors.
Technical Index
Product Param
| Connect the detector | Can connect up to 16 detectors with RS485 signal |
| Display mode | LCD display |
| power supply | AC220V±15%50Hz±1% |
| power | ≤10W (host power consumption) |
| Output voltage | DC24V±15% |
| input signal | RS485 |
| Channel output | DC24V 500mA/channel |
| Relay capacity | DC24V 1A/channel |
| Installation method | Safe on-site wall-mounted installation |
| Applicable detector | Gas detector with RS485 output |
| Communication distance | ≤1200m |
| Implementation standards | GB 16808-2008 |
| working temperature | -20～+50℃ |
| Working humidity | 10~95%RH no condensation |
| work pressure | 86~106Kpa |
| Overall dimensions | 230*190*100(mm) |
