Dust online monitoring system
Category ：
Key Word ：
Dust online monitoring system
Product Feature
|
Wide range of detection Dust, noise, temperature, humidity, wind speed, etc. |

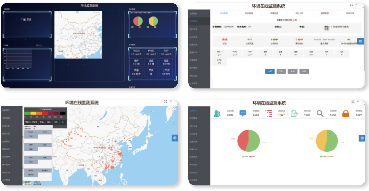

Cloud Monitoring Remote monitoring on cloud platform |
Exceeding the standard linkage No need for human intervention |
Product Description

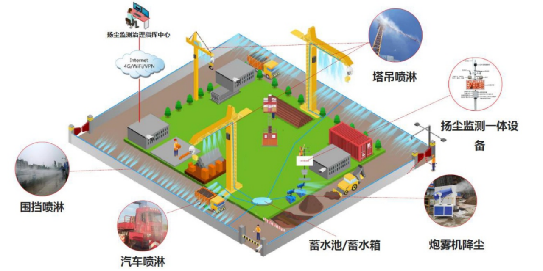

The product is suitable for real-time online monitoring of various construction sites, road construction sites, coal mines, etc. The monitored data include dust concentration, noise index, and video footage.The monitoring data include dust concentration, noise index, and video footage. Through the Internet, it is possible to realize real-time remote automatic monitoring of particle concentration and on-site data transmission through the Internet.When the dust monitoring system is in operation, it automatically collects data that exceeds the standard and then transmits the collected data to the server through the internet to realize real-time data.In addition, the system has an automatic alarm function that allows it to monitor changes in the environment so that corrective action can be taken, and it has an alarm linkage output that can be linked to an external spraying device to reduce dust.
Technical Index
Product Param
| Test type | ①PM2.5 ②PM10 ③Noise ④Temperature ⑤Humidity ⑥Wind direction ⑦Wind speed ⑧Wind force ⑨TSP ⑩Atmospheric pressure Ten tests can be matched at will |
| Network category | 4G extremely fast transmission |
| Display mode | 540mm*1020 mm LED dot matrix screen |
| Working temperature and humidity | - 20~120℃ 0~95%RH (no condensation) |
| input signal | RS4854 - 20mA signal |
| Relay output | Two relays (10A250V) can be connected |
| Overall dimensions | 2825*1020(mm) |
