PLT811 Single Gas Detector
Category ：
Key Word ：
Single gas detector
Product Feature
|
Single gas Any one of the detection gases can be customized |
Real human voice Real human voice vocalization |
Triple alarm Acousto-optic shock alarm |
Imported components Original imported sensors |
Three-proof design Explosion-proof, dust-proof and water-proof |
Two languages Bilingual in English and Chinese |
Product Description
A single gas detector is a safe device that can continuously detect the concentration of leaked gases. Adopting advanced integrated circuit technology, embedded microcomputer control, high-quality imported gas sensors, it has excellent sensitivity and excellent repeatability. The dot matrix LCD display supports both Chinese and English interfaces and voice prompts, allowing users to quickly understand the product. The use and maintenance are simple. The shell is made of high-strength engineering plastic, which has good earthquake resistance, high strength, high-end and atmospheric appearance, and has dustproof, waterproof and explosion-proof functions
Technical Index
|
Gas name |
measuring range |
Optional range |
|
combustible gas |
0-100%LEL |
0-100%Vol |
|
oxygen |
0-30%Vol |
0-30%Vol |
|
hepatic gas |
0-100PPM |
0-50/200/1000PPM |
|
carbon monoxide |
0-1000PPM |
0-500/2000/5000PPM |
|
carbon dioxide |
0-5000PPM |
0-1%/5%/10%Vol |
|
nitric oxide |
0-250PPM |
0-500/1000PPM |
Product Param
| Detection of gases | 1 flammable,toxic and harmful gas |
| Detection accuracy | ≤±5%FS |
| Response time | T<30S |
| Detection method | Free diffusion |
| display screen | 2.31 inch LCD display |
| Sensor category | Electrochemical/Infrared Detection/Catalytic Combustion/PID,etc. (dependingonthe gas detected) |
| Display mode | Single-channel cycle display |
| Charging &Batteries | Equipped with a fast charger 1800mAh battery |
| Records storage | 3,000 pieces as standard |

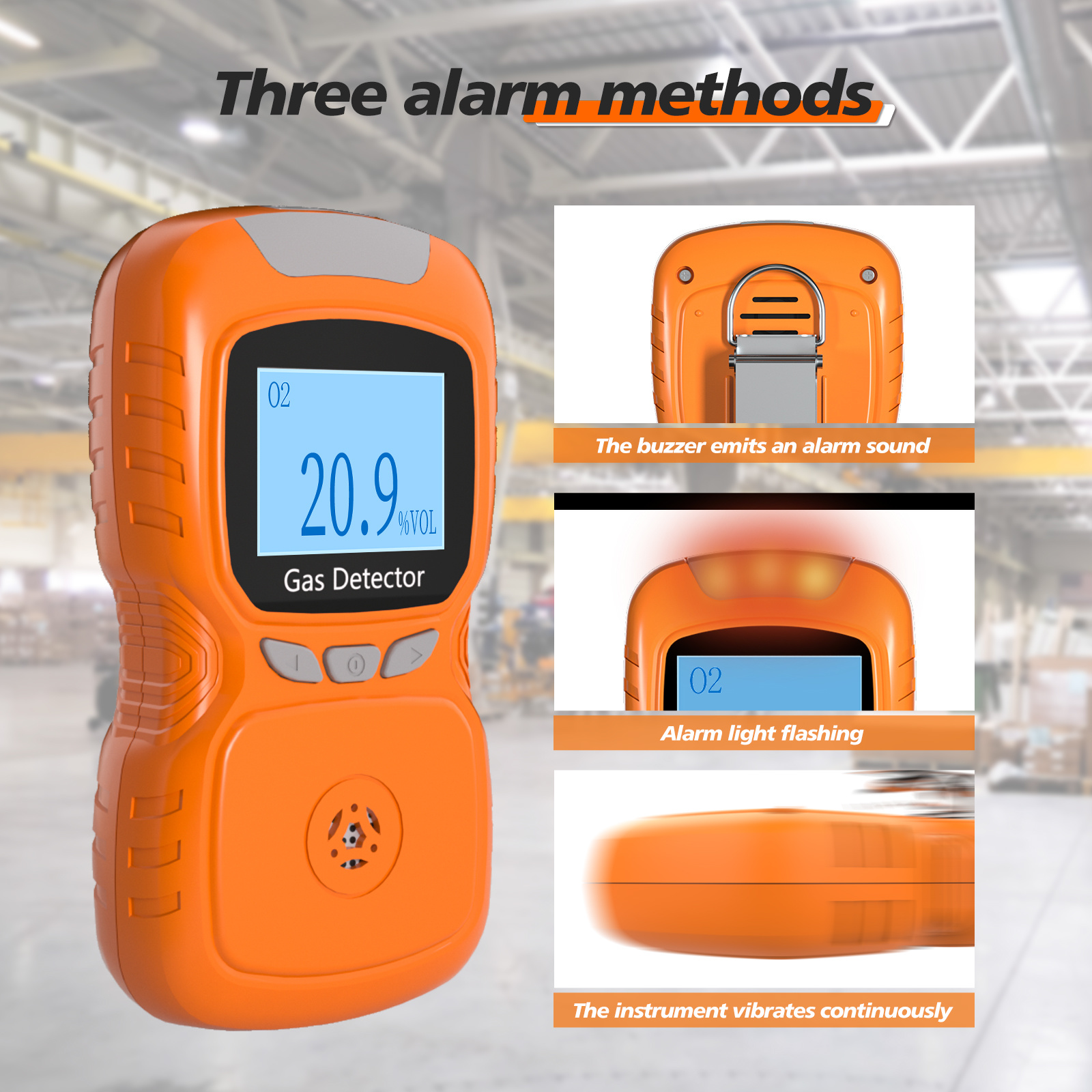

| Alarm mode | Buzz/Light/Vibrate |
| Interface language | Bilingual can be switched between Chinese and English |
| Unit switching | PPM,%LEL,%Vol,and PPB can be switched |
| Operating temperature | Temperature:-20℃℃~50℃ |
| Operating humidity | Humidity:<95%RH non-condensing |
| Work pressure | Pressure:-30kPa~200kPa |
| Ingressprotection | IP65 dustproof,splash and explosion proof |
| Dimensions | 2.36in*1.02in*4.48in |
| weight | Approximately 120 g |
