Pump suction single Gas detector
Category ：
Key Word ：

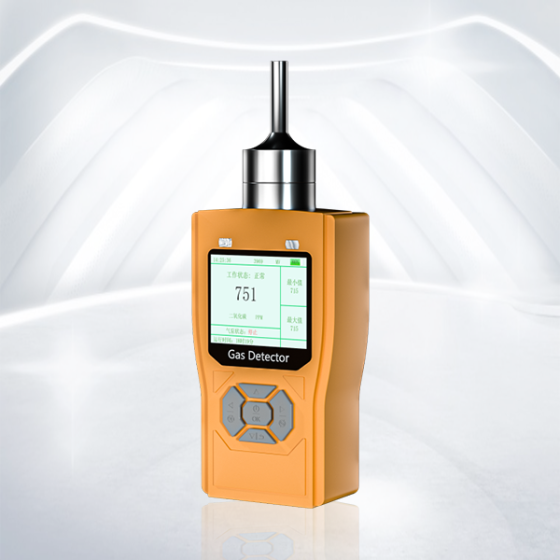

Pump suction single Gas detector
Product Feature
|
Pump suction type Built-in high-end vacuum suction pump |
Pure gas Either detection gas can be customized |
High precision chip Ultra-high-resolution dedicated chip |
Imported components Original, imported sensor |
Real-time curve Support for detection data curve drawing |
Chinese and English bilingual Both Chinese and English bilingual can switch |
Product Description
The pump suction single gas detector is a safe device that can continuously detect the concentration of leakage gas. Using advanced integrated circuit technology, 32-bit embedded microcomputer chip control, imported 16-bit ultra-high resolution ADC detection special chip, faster computing speed test data is more accurate and stable. The detector uses 2.31-inch HD LCD color screen, through Chinese and English interface and Chinese and English voice prompt, users can quickly understand the product, simple maintenance, USB charging interface, built-in 2900 mAh large capacity lithium battery and high-end vacuum suction pump, high quality imported gas sensor has excellent sensitivity and excellent repeatability; PPM and mg / m3 range unit one key switch, fast response speed, anti-interference ability, stable and reliable performance, in the leading level in China.
Technical Index
|
Gas name |
measuring range |
Optional range |
|
combustible gas |
0-100%LEL |
0-100%Vol |
|
oxygen |
0-30%Vol |
0-30%Vol |
|
hepatic gas |
0-100PPM |
0-50/200/1000PPM |
| carbon monoxide | 0-1000 PPM |
0-500/2000/500 0 PPM |
Product Param
|
Detection of gas detection 1 kind of combustible, toxic and harmful gas |
|
|
Detection accuracy of ± 5% FS |
|
|
response time |
T＜30S |
|
detection mode |
Built-in pump suction |
|
display screen |
2.31-inch HD color screen |
|
Sensor category |
Electrochemical / infrared detection / catalytic combustion / PID, etc. (depending on the detection gas) |
|
Display mode |
Single-channel loop display / real-time curve display |
|
Charging and battery |
The 2900 mAh battery comes with a quick charger |
|
Alarm record storage |
Standard standard 100,000 |
|
Alarm mode: beep / light / vibration |
|
|
The interface language can be switched in Both Chinese and English |
|
|
Check unit switch |
The PPM,% LEL,% Vol, and PPB can be switchable |
|
Temperature and humidity detection |
Optional |
|
Working temperature and humidity |
Temperature: -20℃ ~50℃ Humidity: 95% RH without condensation |
|
Working pressure |
-30kPa~20 0kPa |
|
Levels of protection |
IP65 is dustproof, waterproof and splash, and explosion-proof |
|
Outline dimension |
67*35*205( mm) |
|
Weight |
About 375.5g |
