GTY-PLT219 Industrial and Commercial Point Type Gas Detector
Category ：
Key Word ：
GTY-PLT219 Industrial and Commercial Point Type Gas Detector
Product Feature
|
Gas Customization Any gas can be detected |
Liquid crystal display Liquid crystal screen display |
Imported components Original imported sensors |
Signal Transmission RS485 signal |
Dual Alarm Sound and light alarm |
Remote control Infrared remote control |
Product Description
This gas detector adopts the most advanced ultra-large-scale integrated circuit technology, designed by the international standard intelligent technology level, is a completely intelligent gas detection transmitter designed by digital and analog mixed communication technology.The intelligent gas detection transmitter has advanced technology, excellent performance, high stability, communication and self-diagnostic functions, easy installation and maintenance, which greatly meets the requirements of high reliability of equipment for on-site safety monitoring in the industry.
Technical Index
|
Gas name |
measuring range |
Optional range |
|
combustible gas |
0-100%LEL |
0-100%Vol |
|
oxygen |
0-30%Vol |
0-30%Vol |
|
hepatic gas |
0-100PPM |
0-50/200/1000PPM |
|
carbon monoxide |
0-1000PPM |
0-500/2000/5000PPM |
Product Param
| Number of gases detected | 1 kind of flammable, toxic and harmful gas |
| Detection accuracy | ±5%FS |
| response time | T≤30S |
| Detection method | free diffusion |
| Display | LCD screen |
| Output signal | 4-20MA RS485 optional |
| display mode | Single channel cycle display |
| Working voltage | DC24V |
| Debugging mode | Button or infrared remote control |
| Alarm mode | Sound and light alarm, relay output alarm |
| relay | Passive relay; output capacity 12-220V2A |
| Detection principle | Electrochemistry, catalytic combustion, infrared, thermal conductivity, PID photoion, etc. (depending on the detection gas) |
| Explosion-proof level | Exd IIC T6 GB |
| Protection level | IP65 |
| working environment | Temperature: -10~55℃ Humidity: 10~95%RH without condensation |
| Sensor life | 3 years |
| Overall dimensions | 185*140*92(mm) |
| weight | About 1.8kg |
Workshop Video
We have the development equipment, testing equipment, production equipment required by the industry; Achieve integration from development to testing to production.
Household gas detector

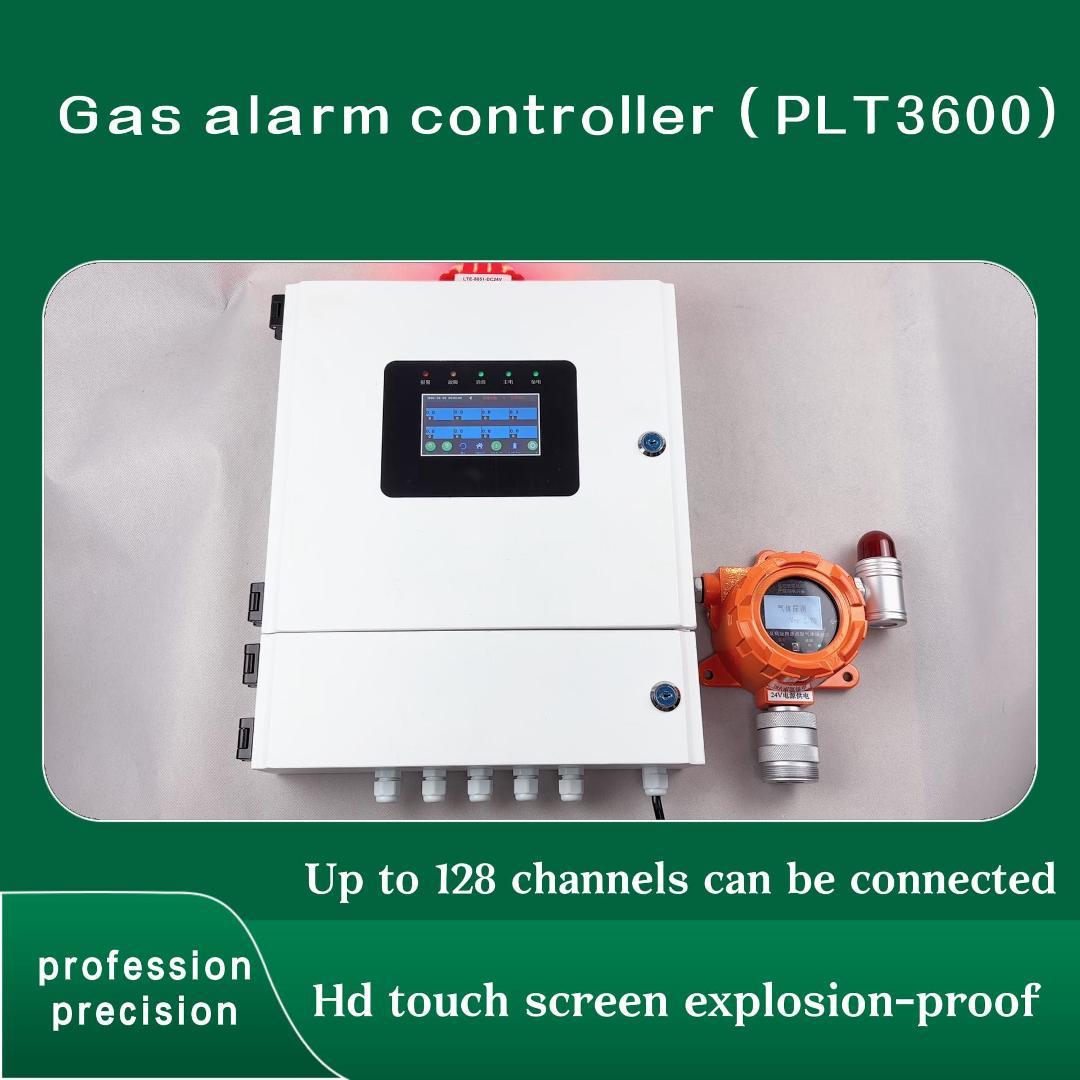

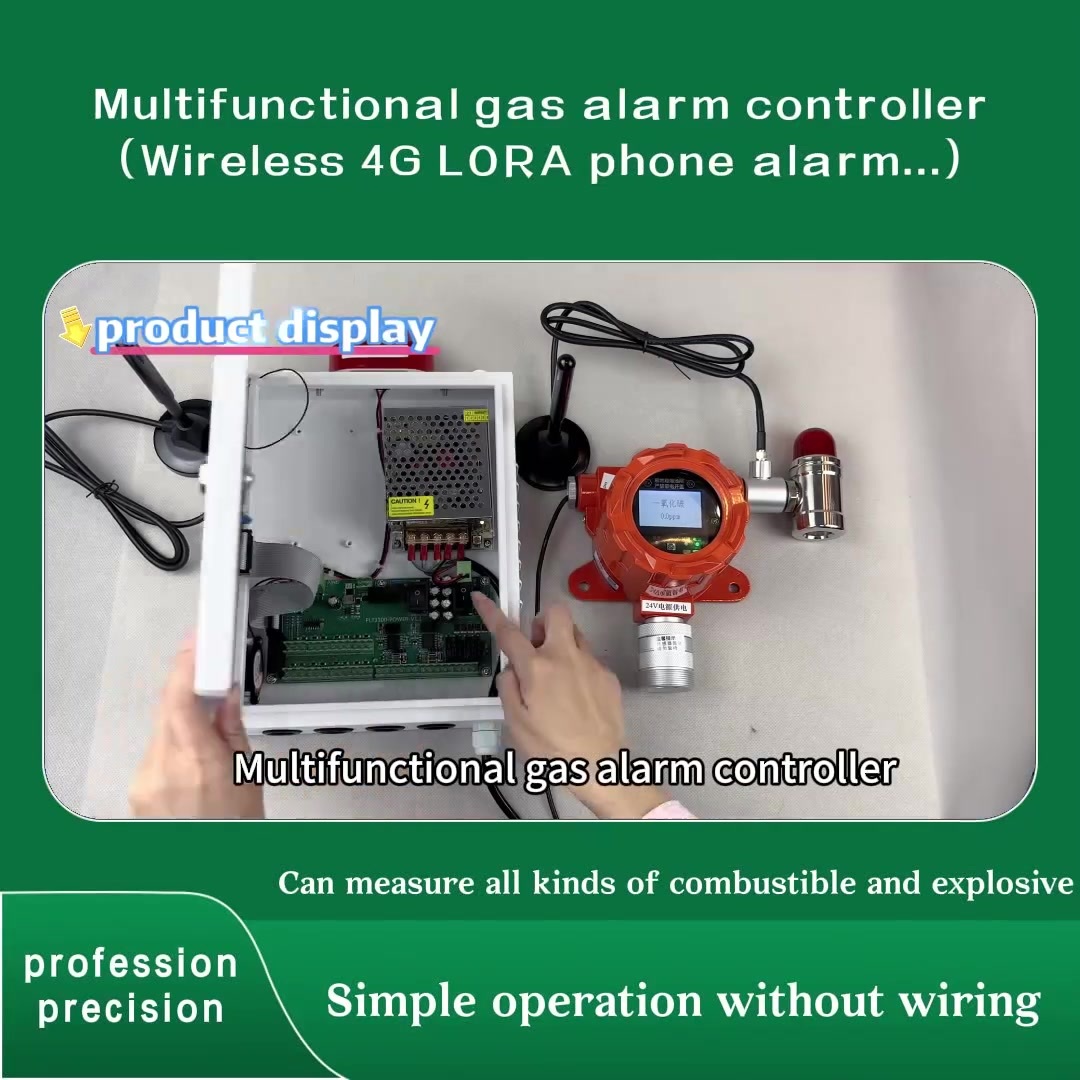

Multifunctionalgas alarm controller
